Pomona ElectronicsUnited States
MINI HOOK TO MINI HOOK 24"
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 5 A |
| Voltage - Rated | 30VAC, 60VDC |
| Environment and package | |
| Package | Bulk |
| Temperature Range | 216°F(102°C) |
| Other | |
| 1st Connector | Mini Hook |
| 2nd Connector | Mini Hook |
| Base Product Number | 3781 |

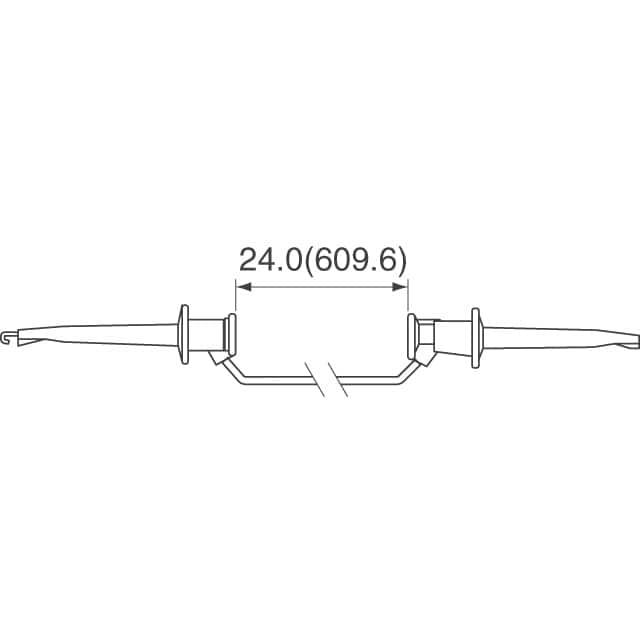

| Cable Length | 24.0" (609.60mm) |
| Configuration | Grabber, Hook to Grabber, Hook |
| Contents | 1 Lead, Red |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mfr | Pomona Electronics |
| Product Status | Active |
| Series | Minigrabber® 3781 |
| Wire Gauge | 20 AWG |
Documents
No documents are linked to this part yet.
