37401000430
Littelfuse Inc.United States

37401000430

ActiveFuses

FUSE BRD MNT 100MA 250VAC RADIAL

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Rated current100 mA
Rated voltage250 V
Response timeSlow
Breaking capacity50 A
Power
Breaking Capacity @ Rated Voltage50A
Current Rating (Amps)100 mA
Voltage Rating - AC250 V
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageBulk
Package / CaseRadial, Can, Vertical

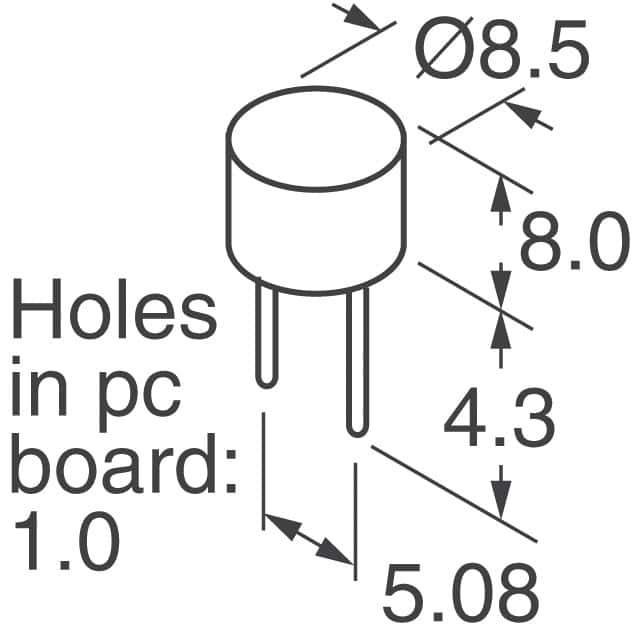

Size / Dimension0.335" Dia x 0.315" H (8.50mm x 8.00mm)
Other
Approval AgencyCSA, cULus
Color-
DC Cold Resistance3.84 Ohms
Fuse TypeBoard Mount (Cartridge Style Excluded)
Melting I²t0.025
MfrLittelfuse Inc.
Product StatusActive
Response TimeSlow Blow
SeriesTR5® 374
