37311000430
Littelfuse Inc.United States

37311000430

ActiveFuses

FUSE BOARD MNT 1A 250VAC RADIAL

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Rated current1 A
Rated voltage250 V
Response timeFast
Breaking capacity50 A
Power
Breaking Capacity @ Rated Voltage50A
Current Rating (Amps)1 A
Voltage Rating - AC250 V
Environment and package
Mounting TypeThrough Hole
Operating Temperature-40°C~85°C
PackageBulk
Package / CaseRadial, Can, Vertical

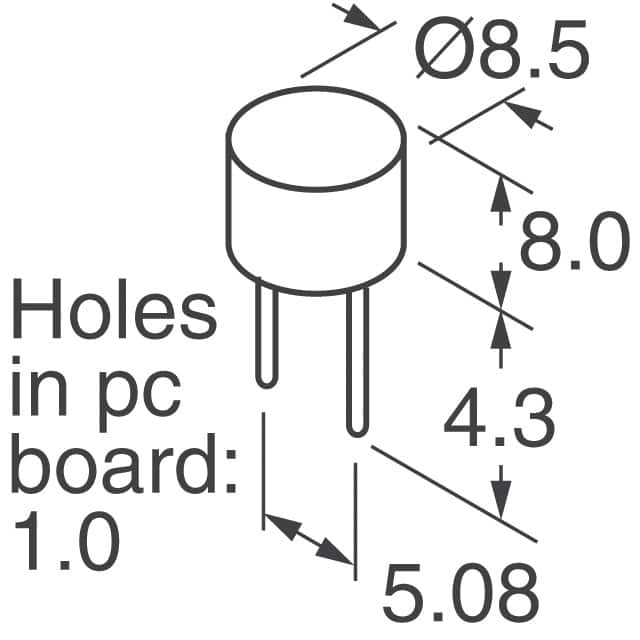

Size / Dimension0.335" Dia x 0.315" H (8.50mm x 8.00mm)
Other
Approval AgencyCSA, cULus
Color-
DC Cold Resistance0.071 Ohms
Fuse TypeBoard Mount (Cartridge Style Excluded)
Melting I²t0.125
MfrLittelfuse Inc.
Product StatusActive
Response TimeFast Blow
SeriesTR5® 373

Documents

DatasheetDatasheet · 654.1 KB · 2026-09-21Application NoteApplication Note · 268.4 KB · 2026-09-22EnvironmentalEnvironmental · 174.4 KB · 2026-09-22EnvironmentalEnvironmental · 169.2 KB · 2026-09-22Application NoteApplication Note · 135.2 KB · 2026-09-22Application NoteApplication Note · 92.8 KB · 2026-09-22Application NoteApplication Note · 83.0 KB · 2026-09-22
Open document center
