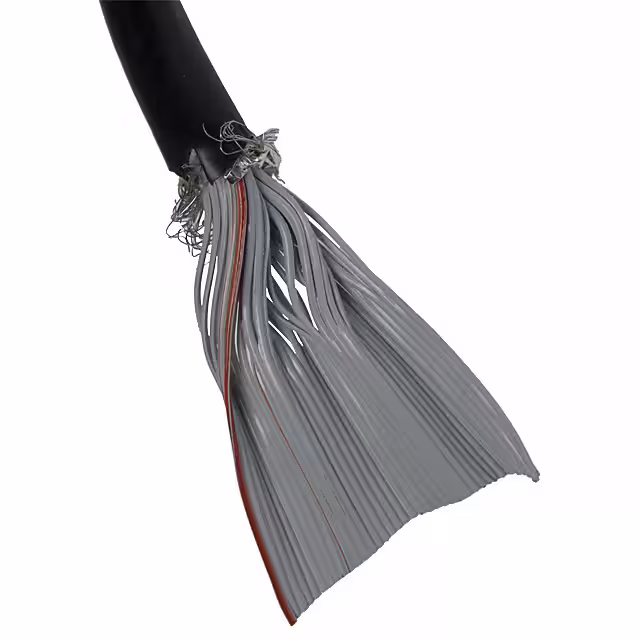

CBL RIBN 37COND 0.05 BLACK 300'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C~105°C |
| Package | Spool |
| Other | |
| Base Product Number | 3659 |
| Cable Type | Flat Cable, Round Jacket |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7 Strands / 36 AWG |
| Features | Zippable |
| First Conductor Mark | Red |
| Insulation Resistance | 10GOhm |
| Jacket Color | Black |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 300.0' (91.44m) |
| Mfr | 3M |
| Number of Conductors | 37 |
| Pitch | 0.050" (1.27mm) |
| Product Status | Active |
| Ratings | UL Style 20267 |
| Ribbon Thickness | - |
| Ribbon Width | 1.800" (45.72mm) |
| Series | 3659 |
| Shielding | Shielded |
| Wire Gauge | 28 AWG |
