3MUnited States

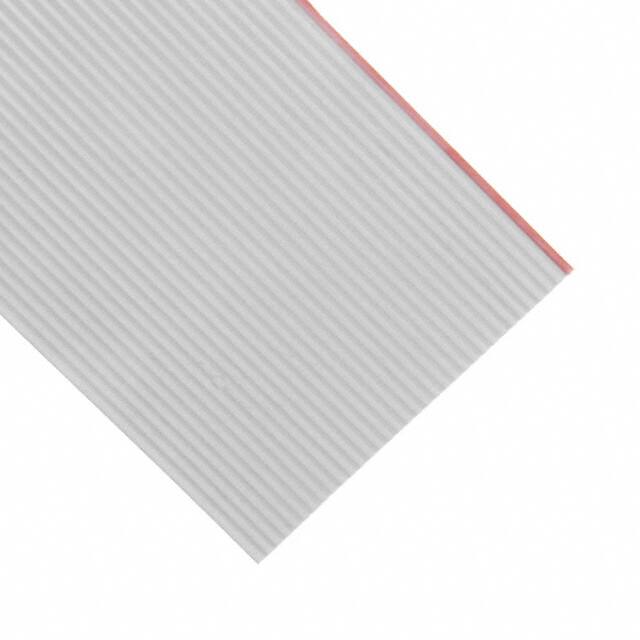

CBL RIBN 34COND 0.039 GRAY 98.4'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C~105°C |
| Package | Bulk |
| Other | |
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7 Strands / 36 AWG |
| Features | Zippable |
| First Conductor Mark | Red |
| Insulation Resistance | 10GOhm |
| Jacket Color | Gray |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 98.4' (30.00m) |
| Mfr | 3M |
| Number of Conductors | 34 |
| Pitch | 0.039" (1.00mm) |
| Product Status | Obsolete |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.035" (0.89mm) |
| Ribbon Width | 1.339" (34.00mm) |
| Series | 3625 |
| Shielding | Unshielded |
| Wire Gauge | 28 AWG |
