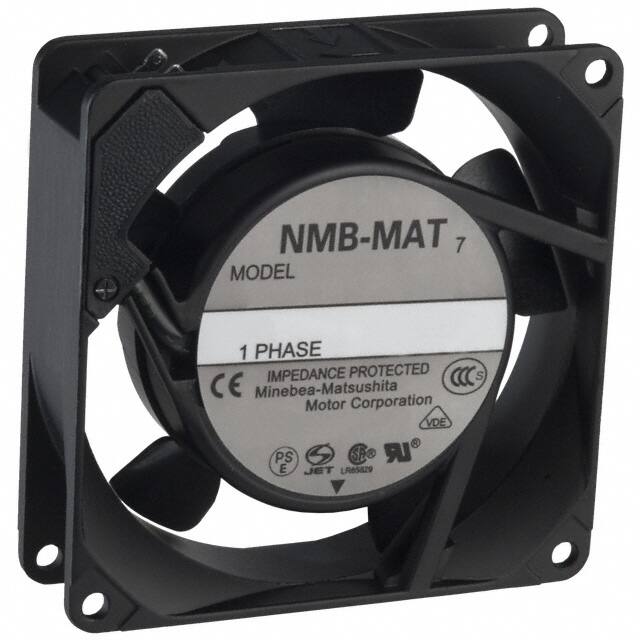

FAN AXIAL 92X25MM 115VAC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.090A |
| Power (Watts) | 6.00W |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 35.0dB |
| Environment and package | |
| Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 92mm L x 92mm H |
| Other | |
| Air Flow | 28.0 CFM (0.784m³/min) |
| Approval Agency | CE, CSA, TUV, UL, VDE |
| Base Product Number | 3610PS |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polycarbonate (PC), Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Mfr | NMB Technologies Corporation |
| Product Status | Obsolete |
| RPM | 2500 RPM |
| Series | PS |
| Static Pressure | 0.160 in H2O (40.0 Pa) |
| Termination | 2 Terminals |
| Weight | 0.66 lb (299.37 g) |
| Width | 25.00mm |
