Comus InternationalUnited States

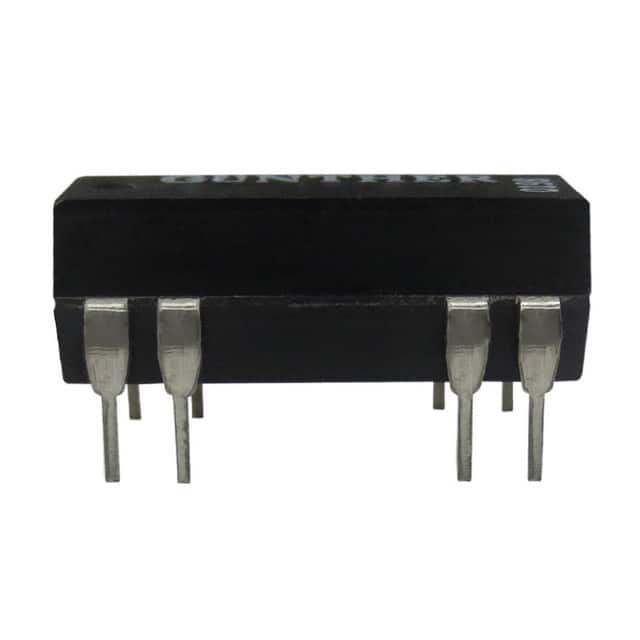

RELAY REED DIP DPST .5A 5V W/DIO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Current | 35.7 mA |
| Coil Voltage | 5VDC |
| Contact Rating (Current) | 500 mA |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.6 VDC |
| Switching Voltage | 150VDC - Max |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~85°C |
| Package | Tube |
| Other | |
| Base Product Number | 3572-1220 |
| Coil Resistance | 140 Ohms |
| Coil Type | Non Latching |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | - |
| Features | Diode |
| Mfr | Comus International |
| Operate Time | 0.5 ms |
| Product Status | Active |
| Release Time | 0.5 ms |
| Seal Rating | - |
| Series | 3572 |
| Termination Style | PC Pin |
