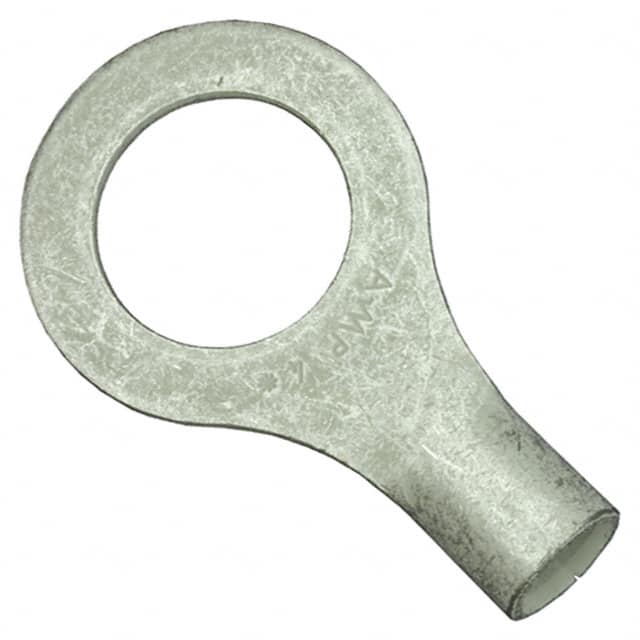

CONN RING CIRC 4AWG #3/4 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 3/4 Stud |
| Other | |
| Base Product Number | 3567 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter | - |
| Length - Overall | 2.090" (53.09mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | Solistrand |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.070" (1.78mm) |
| Width - Outer Edges | 1.250" (31.75mm) |
| Wire Gauge | 4 AWG |
