Alpha WireUnited States
3540

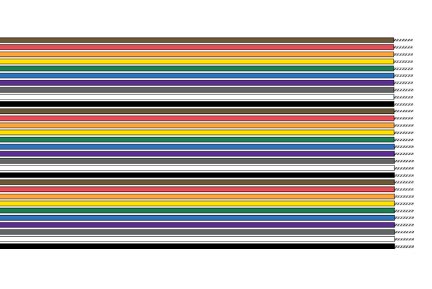

ActiveAlpha Wire offers a variety of ribbon cable that facilitates easier routing and termination - taking up less space than wire harness bundles.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -55 to 105°C |
| Other | |
| 1) Component 1 | 10 X 1 COND |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Capacitance | 32 pf/ft @1 kHz, Nominal Conductor to Conductor |
| 3) California Proposition 65 | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| 3) Inductance | 0.19 µH/ft, Nominal |
| 3) Pull Tension | 37 Lbs, Maximum |
| 4) Conductor DCR | 23.9 Ω/1000ft @20°C, Nominal |
| a) 100 FT | 11 x 0.5 x 3 Continuous length |
| AWM/STYLE 2713 | VW-1 |
| Color | BROWN |
| Cond | 1 |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
