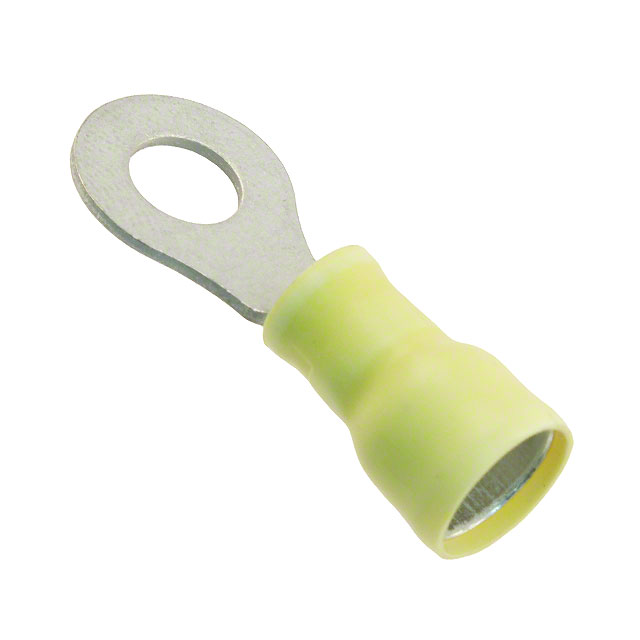

35345
TE ConnectivitySwitzerland

35345

ActiveRing Connectors

CONN RING CIRC 10-12AWG #1/4

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Mounting TypeFree Hanging (In-Line)
PackageBulk
Stud/Tab Size1/4 Stud
Other
Base Product Number3534
ColorYellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Insulation Diameter0.170" ~ 0.300" (4.32mm ~ 7.62mm)
Length - Overall1.416" (35.97mm)
Material - InsulationPoly-Vinyl Chloride (PVC)
MfrTE Connectivity AMP Connectors
Product StatusActive
SeriesPIDG
Terminal TypeCircular
TerminationCrimp
Thickness0.040" (1.02mm)
Width - Outer Edges0.531" (13.49mm)
Wire Gauge10-12 AWG
