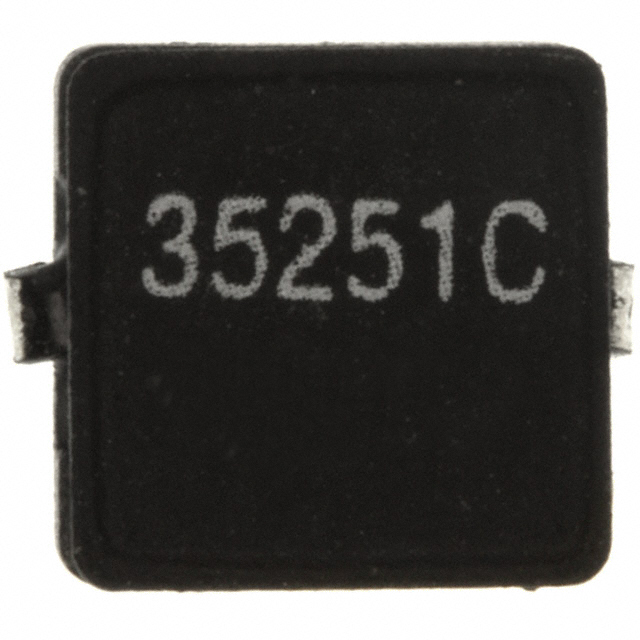

FIXED IND 250NH 15.5A 4.5MOHM SM
All alternatives
View full reportTechnical parameters
Key specs
Inductance250 nH
Rated current15.5 AMax
DC resistance4.5 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 15.5 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Environment and package | |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 35 |
| DC Resistance (DCR) | 4.5mOhm Max |
| Inductance | 250 nH |
| Material - Core | - |
| Mfr | Murata Power Solutions Inc. |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | - |
| Series | 3500 |
| Shielding | Unshielded |
| Tolerance | ±25% |
| Type | Wirewound |
