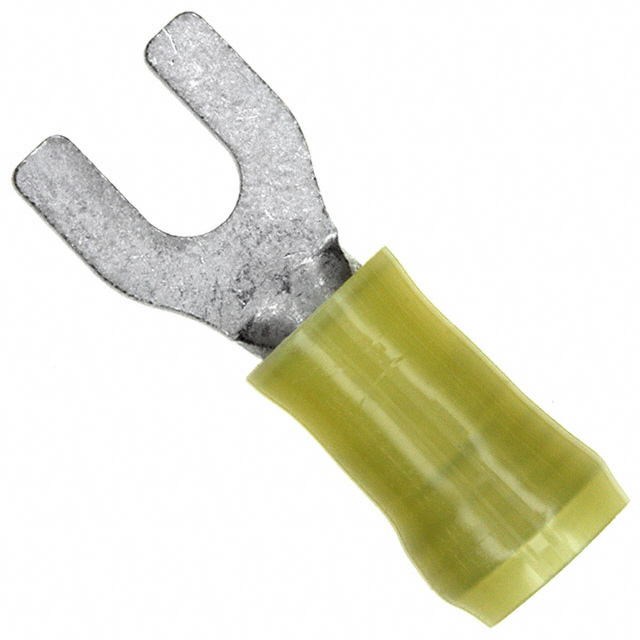

CONN SPADE TERM 10-12AWG #8 YEL
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 8 Stud |
| Other | |
| Base Product Number | 3515 |
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) |
| Length - Overall | 1.095" (27.81mm) |
| Length - Ring Center to Termination | 0.296" (7.52mm) |
| Length - Termination | 0.591" (15.01mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | PIDG |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.171" (4.34mm) |
| Width - Outer Edges | 0.406" (10.31mm) |
| Wire Gauge | 10-12 AWG |
