Littelfuse Inc.United States

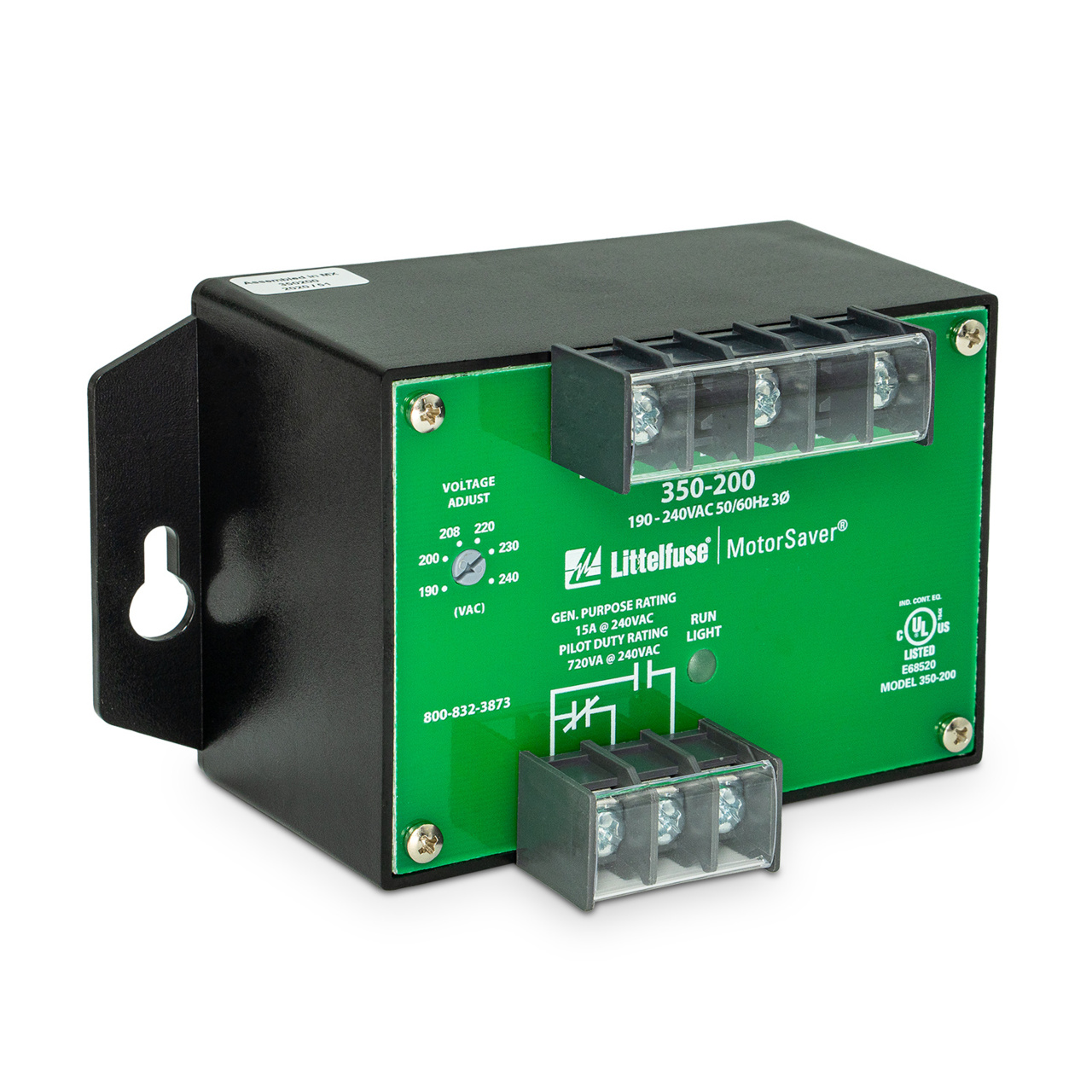

3-PHASE VOLTAGE MONITOR/ 190-2
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 15A @ 600VAC |
| Voltage - Supply | 190 ~ 240VAC |
| AC and DC characteristics | |
| Delay Time | Fixed, 2 Sec, 4 Sec |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 70°C |
| Package | Bulk |
| Other | |
| Circuit | SPDT (1 Form C) |
| Mfr | Littelfuse Inc. |
| Output Type | Relay |
| Product Status | Active |
| Series | 350 |
| Trip Range | 190 ~ 240V AC |
| Trip Status | Energized Low |
| Type | Voltage Asymmetry, Voltage Sensing AC |
