Switchcraft Inc.United States

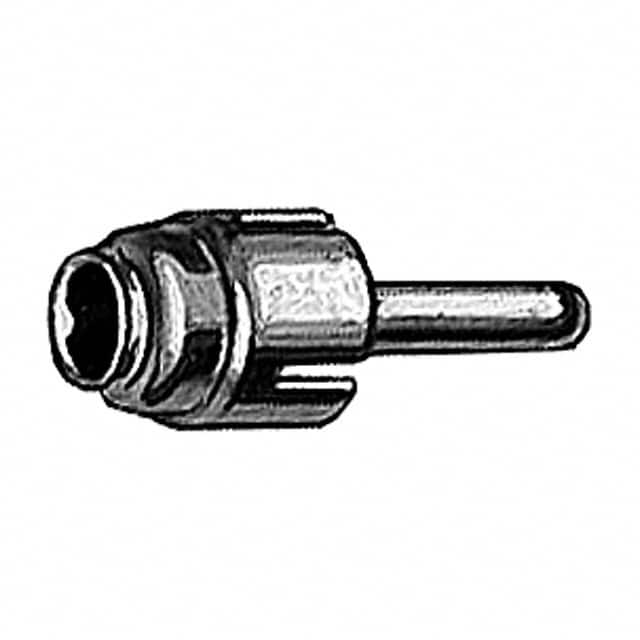

CONN RCA PLUG MONO 2COND
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | - |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Panel Hole Size | - |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.125" (3.18mm ID), 0.374" (9.50mm OD) |
| Body Color | Silver |
| Body Material | Copper Alloy |
| Cable Opening | 0.127" (3.23mm) |
| Connector Type | Phono (RCA) Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Nickel |
| Features | - |
| Gender | Male |
| Housing Material | - |
| Includes | - |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | - |
| Mfr | Switchcraft Inc. |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Product Status | Obsolete |
| Series | 3501M |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
