Century Spring CorpUnited States

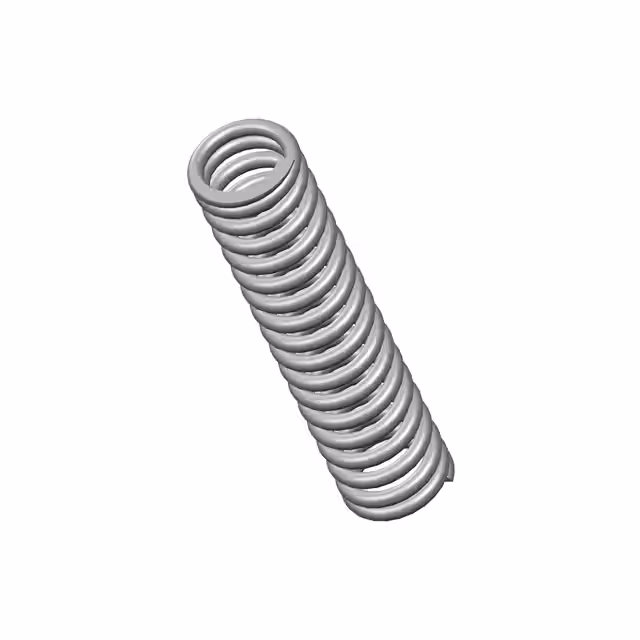

COMP O=1.515,L= 6.75,W= .220
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Diameter - Inside | 1.075" (27.31mm) |
| Diameter - Outside | 1.515" (38.48mm) |
| End Style | Closed & Ground |
| Finish | Zinc |
| Free Length | 6.750" (171.45mm) |
| Material | Spring Steel |
| Mfr | Century Spring Corp |
| Product Status | Active |
| Rate | 97.0 lbs/in |
| Series | - |
| Wire Diameter | 0.220" (5.59mm) |
