SCHURTER Inc.Switzerland

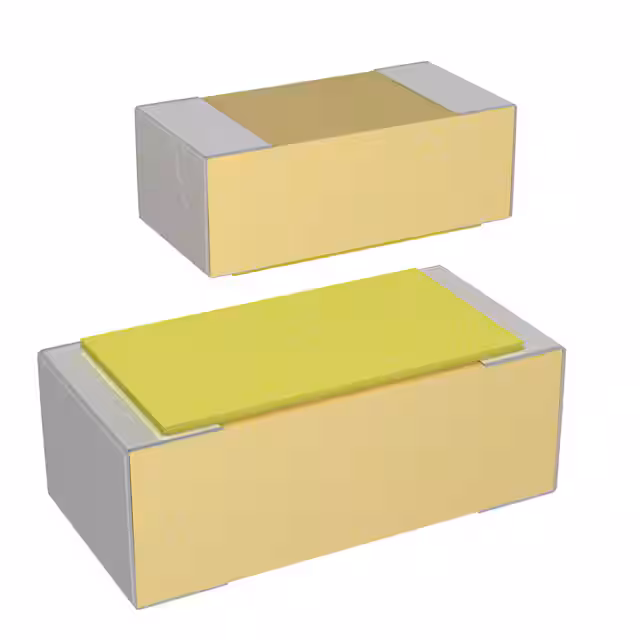

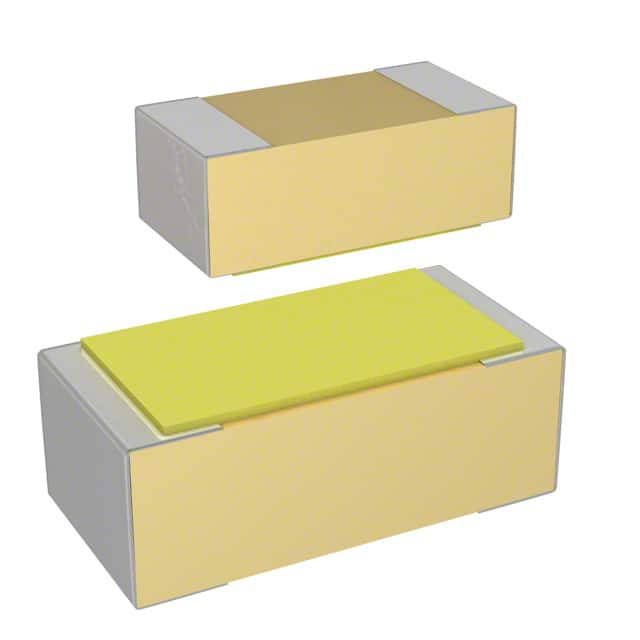

FUSE BOARD MNT 500MA 32VAC 63VDC
All alternatives
View full reportTechnical parameters
Key specs
Rated current500 mA
Rated voltage32 V
Response timeFast
Breaking capacity50 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 63 V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~90°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) |
| Other | |
| Approval Agency | cURus |
| Base Product Number | 3412.0113 |
| Color | - |
| DC Cold Resistance | 0.157 Ohms |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.02 |
| Mfr | SCHURTER Inc. |
| Product Status | Active |
| Response Time | Fast Blow |
| Series | USF 0603 |
