Cornell Dubilier / Illinois CapacitorUnited States

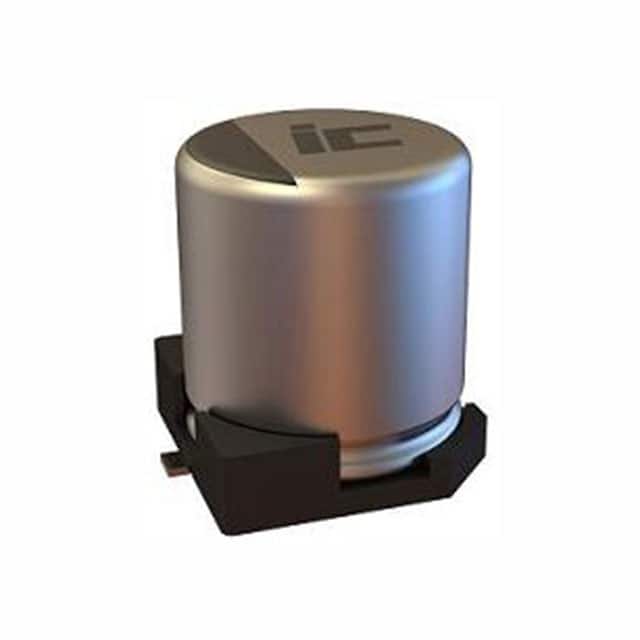

CAP ALUM 33UF 20% 50V SMD
All alternatives
View full reportTechnical parameters
Key specs
Capacitance33 µF
Rated voltage50 V
Tolerance20 %
ESR6.029 ΩMax · 120Hz
Lifetime2 kh105°C
| Power | |
|---|---|
| Voltage - Rated | 50 V |
| AC and DC characteristics | |
| Impedance | 800 mOhms |
| Ripple Current @ High Frequency | 170 mA @ 100 kHz |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Other | |
| Applications | Bypass, Decoupling |
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 6.029Ohm @ 120Hz |
| Lead Spacing | - |
| Mfr | Cornell Dubilier / Illinois Capacitor |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | AXZ |
| Tolerance | ±20% |
