336309-12-0200
AmphenolUnited States

336309-12-0200

Coaxial Cables (RF)

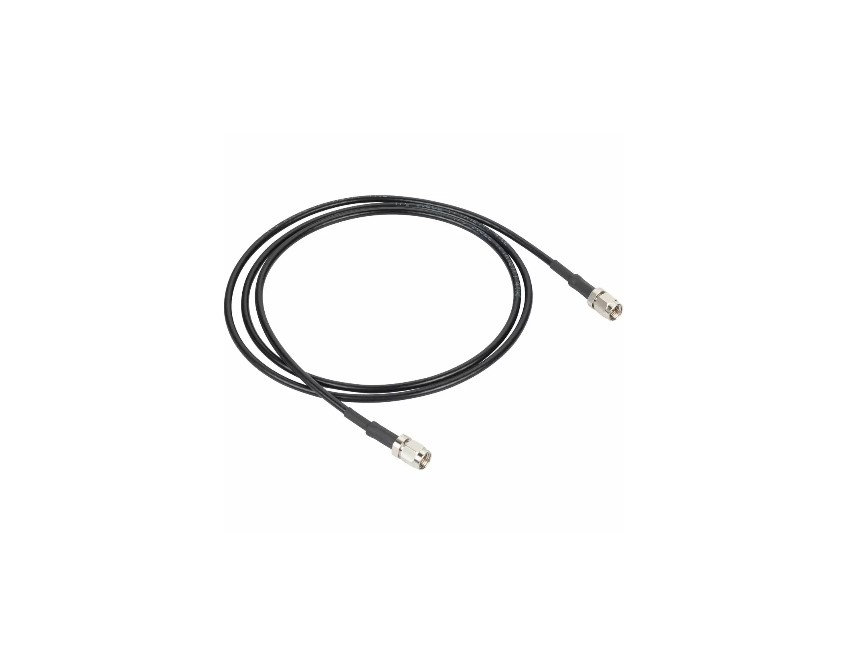

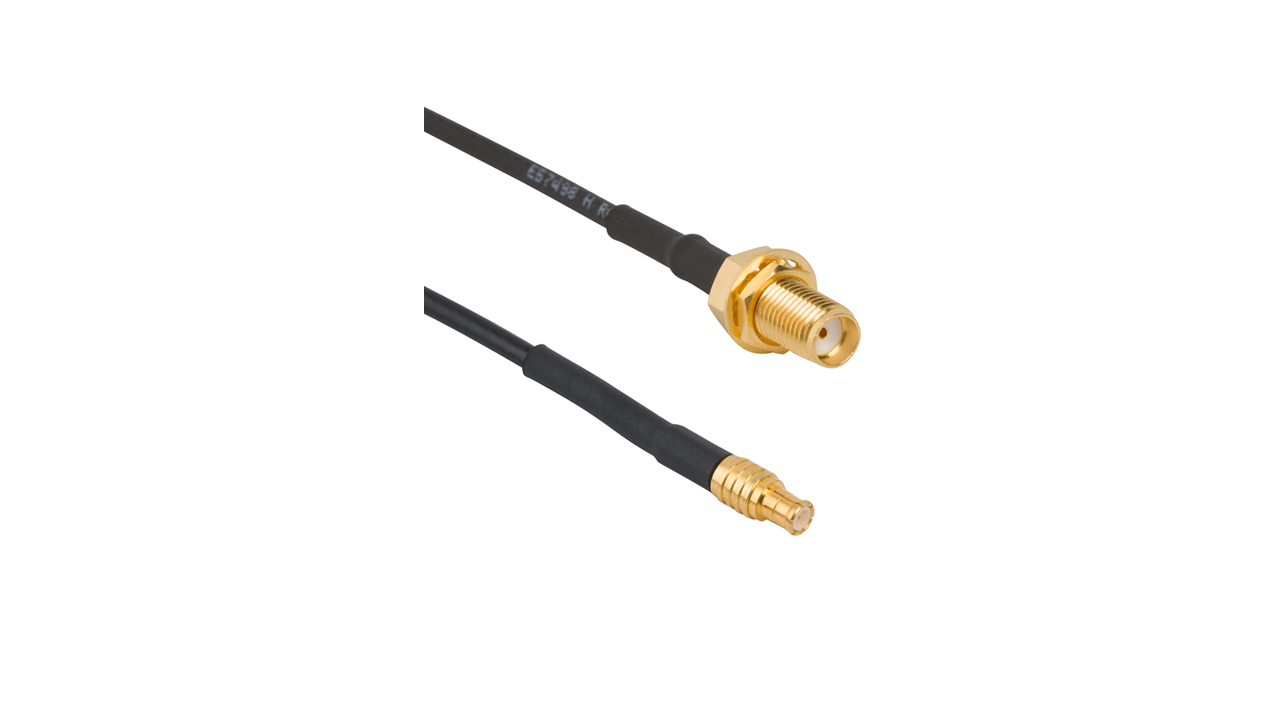

CBL ASSY AMC-SMA JACK-PLG 7.874"

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency - Max6 GHz
Overall Impedance50 Ohms
Environment and package
1st Connector Mounting FeatureBulkhead - Front Side Nut
1st Connector Mounting TypePanel Mount
2nd Connector Mounting Feature-
2nd Connector Mounting TypeFree Hanging (In-Line)
Operating Temperature-
Other
1st ConnectorSMA Jack
1st Contact GenderFemale
2nd ConnectorU.FL (UMCC), AMC Plug, Right Angle
2nd Contact GenderFemale
Base Product Number336309
Cable Type1.13mm OD Coaxial Cable
ColorBlack
Features-
Ingress ProtectionIP67 - Dust Tight, Waterproof
Length7.874" (200.00mm)
ManufacturerAmphenol RF
PackagingBulk
Part StatusNot For New Designs
Series-
StyleU.FL (UMCC), AMC to SMA
