Aavid, Thermal Division of Boyd CorporationUnited States

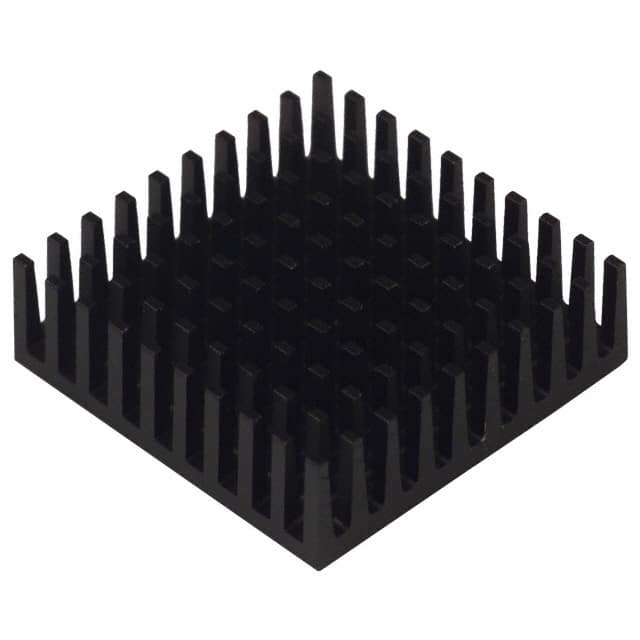

HEATSINK BGA W/ADHESIVE TAPE
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.370" (9.40mm) |
| Package | Bulk |
| Package Cooled | BGA |
| Power Dissipation @ Temperature Rise | 2.0W@60°C |
| Thermal Resistance @ Forced Air Flow | 9.10°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 29.40°C/W |
| Other | |
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Base Product Number | 335824 |
| Diameter | - |
| Length | 1.180" (29.97mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Aavid, Thermal Division of Boyd Corporation |
| Product Status | Active |
| Series | - |
| Shape | Square, Pin Fins |
| Shelf Life | - |
| Type | Top Mount |
| Width | 1.180" (29.97mm) |
