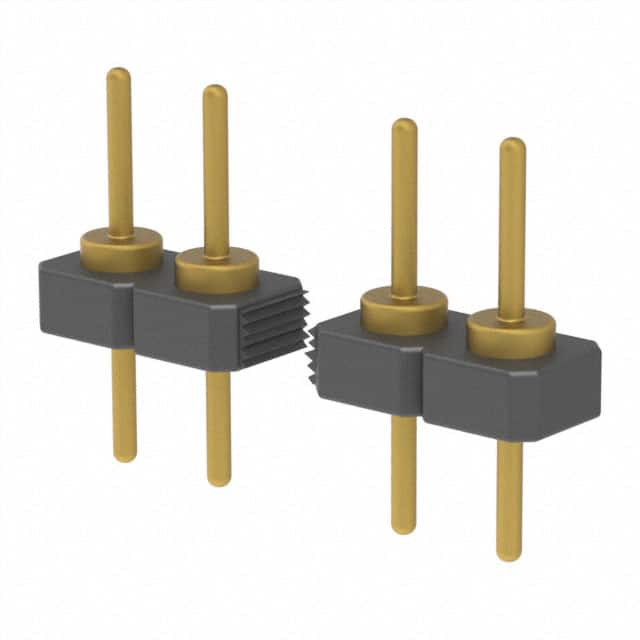

CONN HEADER VERT 20POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions20
Rows1
Pitch2.54 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | 100V, 150VDC |
| Environment and package | |
| Insulation Height | 0.050" (1.27mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tube |
| Other | |
| Applications | - |
| Base Product Number | 335-10 |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Length - Mating | 0.125" (3.18mm) |
| Contact Length - Post | 0.104" (2.64mm) |
| Contact Material | Brass Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Material Flammability Rating | - |
| Mfr | Mill-Max Manufacturing Corp. |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | 0.299" (7.60mm) |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | 335 |
| Shrouding | Unshrouded |
| Style | Board to Board |
| Termination | Solder |
