Bourns Inc.United States

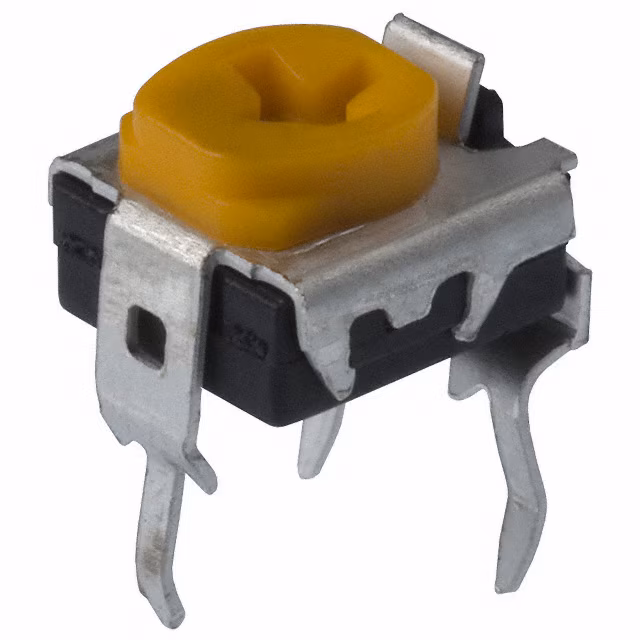

TRIMMER 500 OHM 0.1W PC PIN TOP
All alternatives
View full reportTechnical parameters
Key specs
Resistance500 Ω
Tolerance30 %
Power100 mWMax
Turns1
| Power | |
|---|---|
| Power (Watts) | 0.1W, 1/10W |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Bulk |

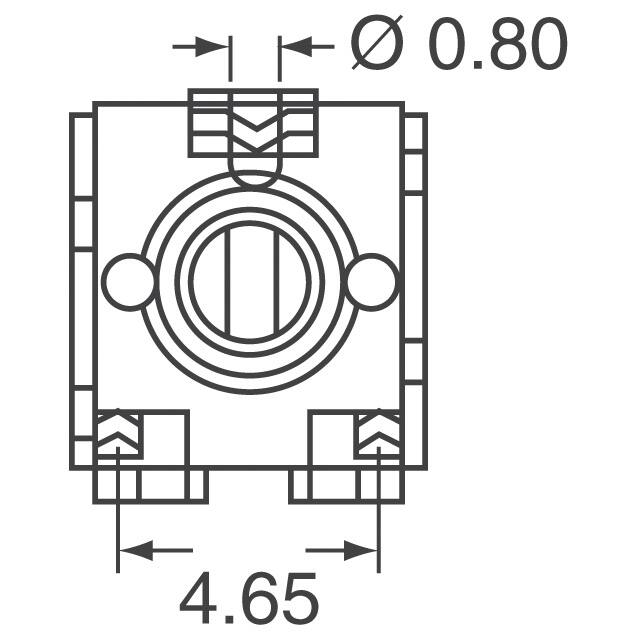

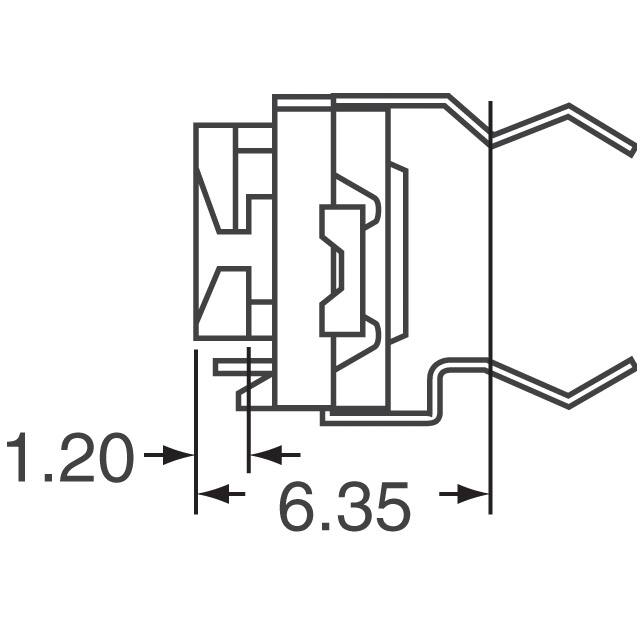

| Size / Dimension | Rectangular - 0.264" x 0.252" Face (6.70mm x 6.40mm) |
| Temperature Coefficient | ±1000ppm/°C |
| Other | |
| Adjustment Type | Top Adjustment |
| Base Product Number | 3318F |
| Mfr | Bourns Inc. |
| Number of Turns | 1 |
| Product Status | Obsolete |
| Resistance | 500 Ohms |
| Resistive Material | Carbon |
| Series | Trimpot® 3318 - Open Frame |
| Termination Style | PC Pins |
| Tolerance | ±30% |
