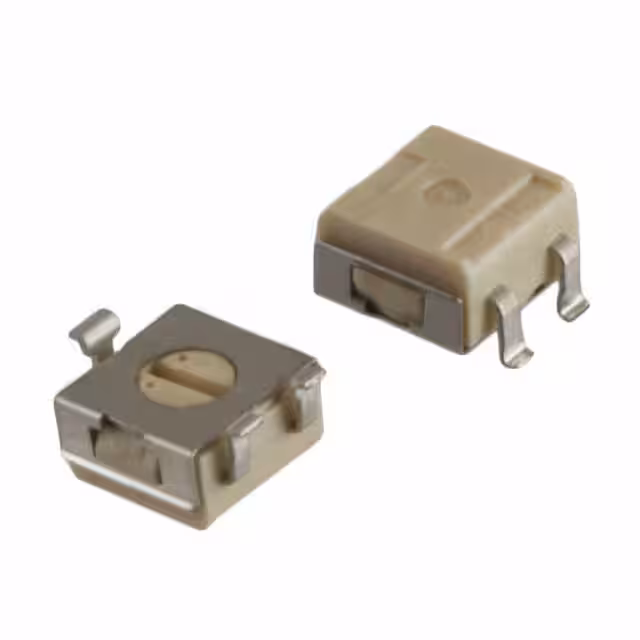

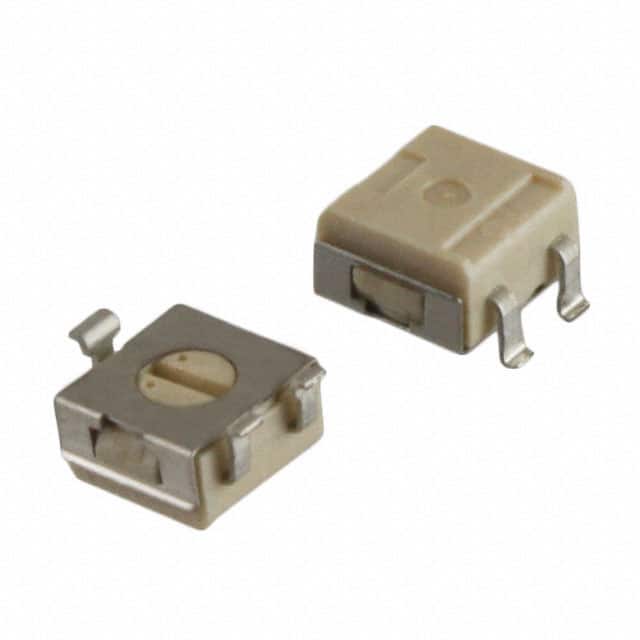

3314R-1-501E
Bourns Inc.United States

3314R-1-501E

ActiveTrimmer Potentiometers

TRIMMER 500 OHM 0.25W GW BOTTOM

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance500 Ω
Tolerance20 %
Power250 mWMax
Turns1
Power
Power (Watts)0.25W, 1/4W
Environment and package
Mounting TypeSurface Mount
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®

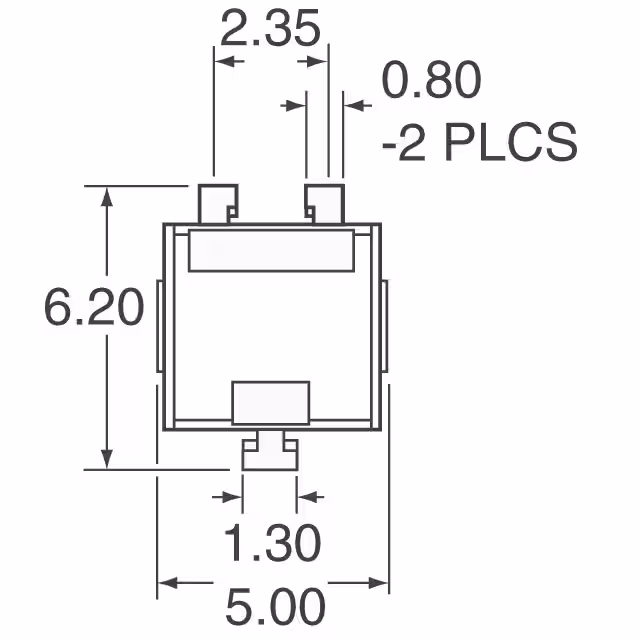

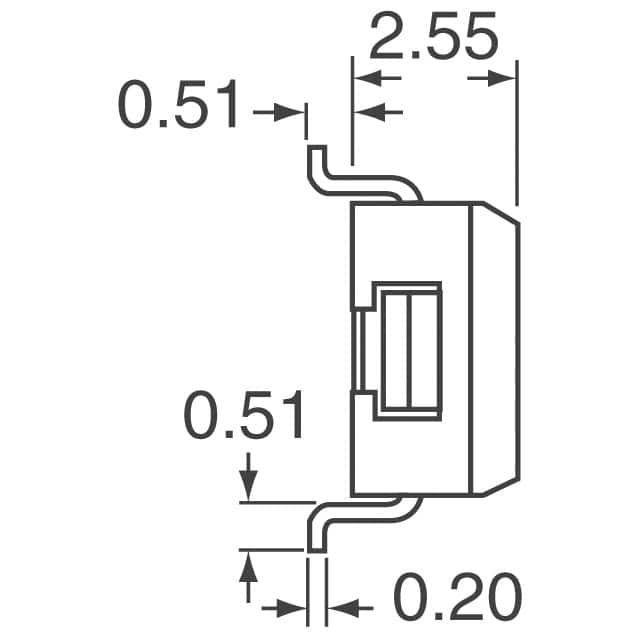

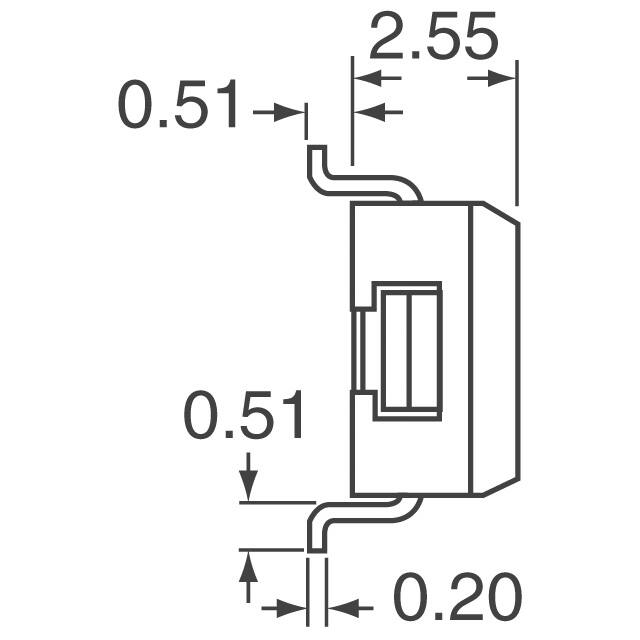

Size / DimensionSquare - 0.177" x 0.177" Face (4.50mm x 4.50mm)
Temperature Coefficient±100ppm/°C
Other
Adjustment TypeBottom Adjustment
Base Product Number3314R
MfrBourns Inc.
Number of Turns1
Product StatusActive
Resistance500 Ohms
Resistive MaterialCermet
SeriesTrimpot® 3314 - Sealed
Termination StyleGull Wing
Tolerance±20%
