Littelfuse Inc.United States

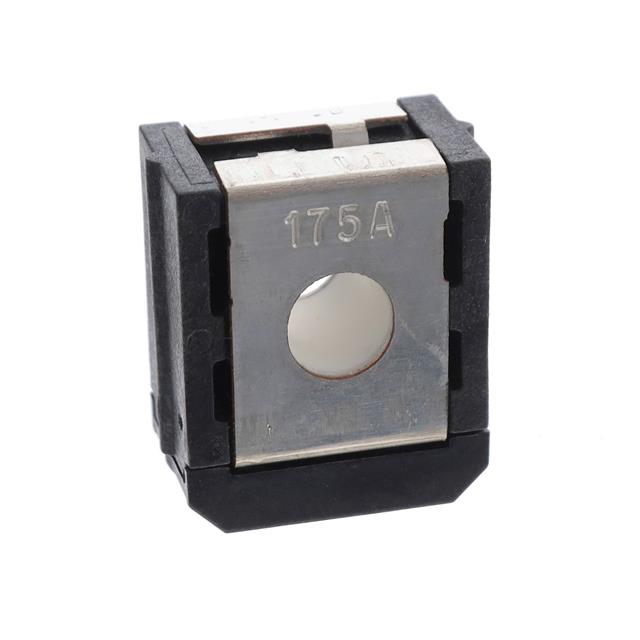

FUSE AUTO 175A 32VDC MODULE
All alternatives
View full reportTechnical parameters
Key specs
Rated current175 A
Rated voltage32 V
Breaking capacity2 kA
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 2kA |
| Current Rating (Amps) | 175 A |
| Voltage Rating - DC | 32 V |
| Environment and package | |
| Mounting Type | Bolt Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Bulk |
| Package / Case | Module |
| Size / Dimension | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) |
| Other | |
| Approval Agency | - |
| Color | - |
| DC Cold Resistance | 0.26 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 140000 |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Response Time | - |
| Series | ZCASE® SMZ |
