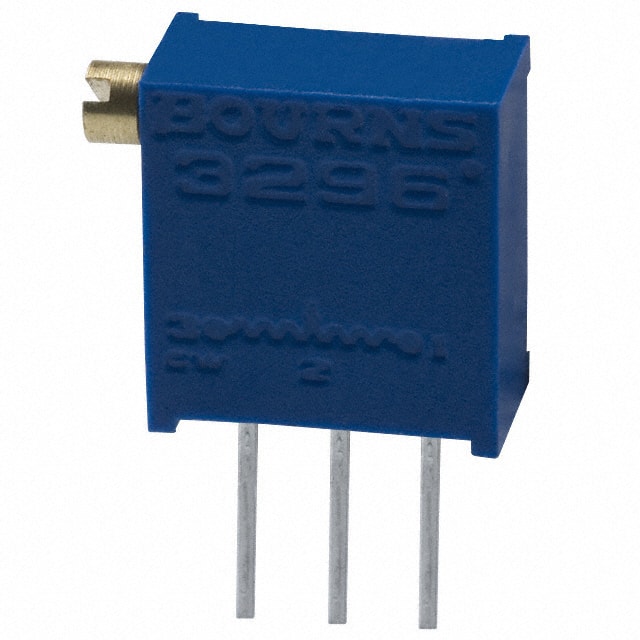

3296X-1-503R
Bourns Inc.United States

3296X-1-503R

ActiveTrimmer Potentiometers

TRIMMER 50K OHM 0.5W PC PIN SIDE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance50 kΩ
Tolerance10 %
Power500 mWMax
Turns25
Power
Power (Watts)0.5W, 1/2W
Environment and package
Mounting TypeThrough Hole
PackageTape & Reel (TR)
Size / DimensionRectangular - 0.395" x 0.190" Face (10.03mm x 4.83mm)
Temperature Coefficient±100ppm/°C
Other
Adjustment TypeSide Adjustment
Base Product Number3296X
MfrBourns Inc.
Number of Turns25
Product StatusActive
Resistance50 kOhms
Resistive MaterialCermet
SeriesTrimpot® 3296 - Sealed
Termination StylePC Pins
Tolerance±10%

Documents

No documents are linked to this part yet.
