Phoenix ContactGermany

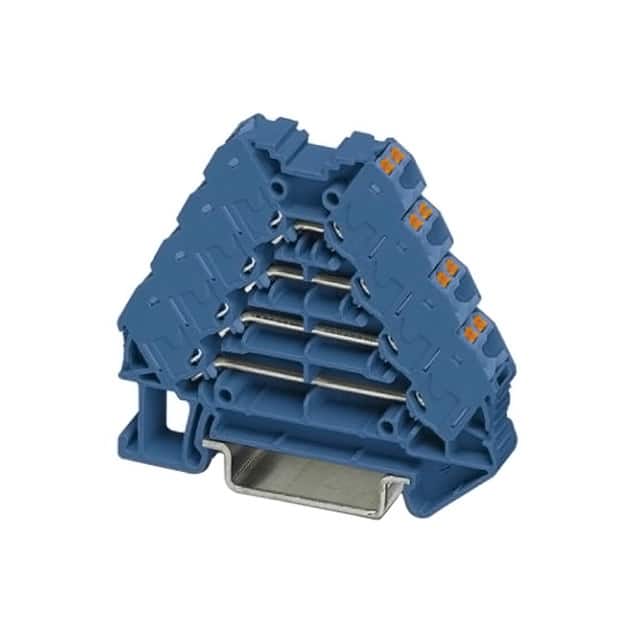

TERM BLK MARSHALLING 16POS 8.3MM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 10 A |
| Current - UL | 10 A |
| Voltage - IEC | 250 V |
| Voltage - UL | 300 V |
| Environment and package | |
| Height (Max) | 2.480" (63.00mm) |
| Mounting Type | DIN Rail |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Features | - |
| Housing Color | Gray |
| Length | 2.520" (64.00mm) |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | Phoenix Contact |
| Number of Levels | 4 |
| Number of Positions | 16 |
| Product Status | Active |
| Series | CLIPLINE PT |
| Stripping Length | 10mm |
| Terminal - Width | 8.3mm |
| Termination Style | Push In, Spring |
| Type | Marshalling Connector |
| Wire Gauge or Range - AWG | 14-26 AWG |
| Wire Gauge or Range - mm² | 0.14-2.5mm² |
