Phoenix ContactGermany

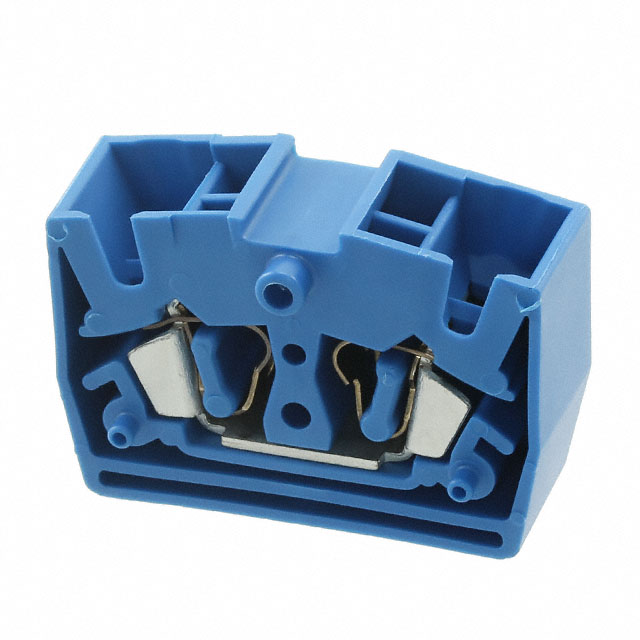

TERM BLK MIDDLE 4POS 10.4MM BLUE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Environment and package | |
| Height (Max) | 0.866" (22.00mm) |
| Mounting Type | Direct Mount |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Features | - |
| Housing Color | Blue |
| Length | 1.260" (32.00mm) |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Product Status | Last Time Buy |
| Series | CLIPLINE MSDB |
| Stripping Length | 8mm |
| Terminal - Width | 10.4mm |
| Termination Style | Spring Cage |
| Type | Middle |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
Documents
No documents are linked to this part yet.
