TE ConnectivitySwitzerland

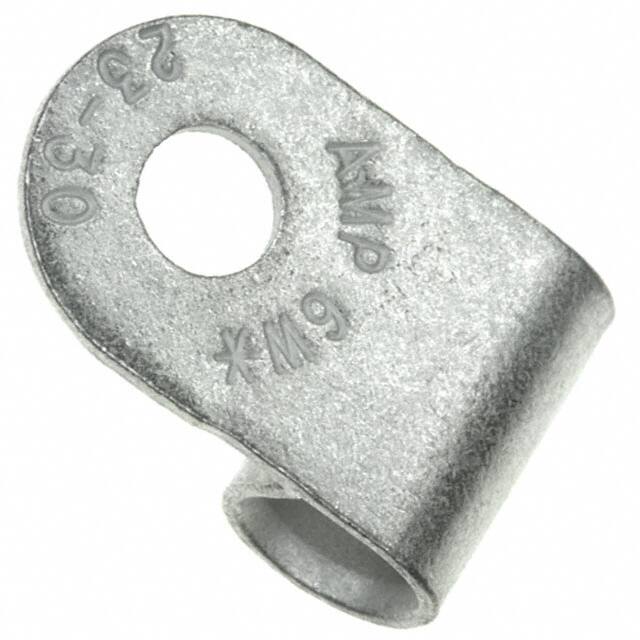

CONN RING CIRC 6AWG #10 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Package | Bulk |
| Stud/Tab Size | 10 Stud |
| Other | |
| Base Product Number | 3231 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter | - |
| Length - Overall | 0.841" (21.36mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | Solistrand |
| Terminal Type | Circular |
| Termination | Crimp, Flag |
| Thickness | 0.045" (1.14mm) |
| Width - Outer Edges | 0.500" (12.70mm) |
| Wire Gauge | 6 AWG |
