C&KUnited States

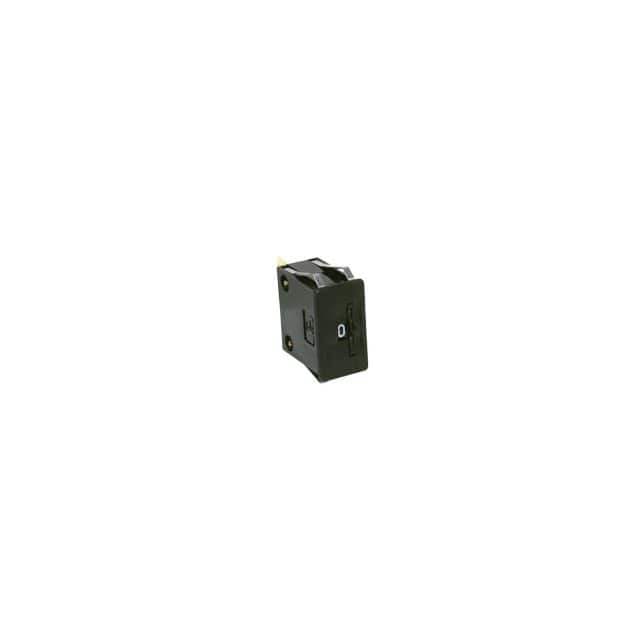

SWITCH THUMB BCD 0.1A 120V/28V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.1A @ 120VAC/28VDC |
| Environment and package | |
| Display Characters - Height | - |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature | -40°C~65°C |
| Package | Bulk |
| Panel Cutout Dimensions | Rectangular - 31.00mm x 24.28mm |
| Other | |
| Actuator Type | Thumbwheel |
| Base Product Number | 323100 |
| Color | Black |
| Contact Finish | - |
| Contact Material | Copper Alloy |
| Depth Behind Flange | 37.85mm |
| Electrical Life | 100,000 Cycles |
| End Caps | Included |
| Features | - |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Mfr | C&K |
| Number of Sections | 2 |
| Output Code | BCD |
| Product Status | Obsolete |
| Read Out | 0 ~ 9 |
| Section Width | 0.315" (8.00mm) |
| Series | 3 |
| Termination Style | Card Edge/Solder Pad |
