Aavid, Thermal Division of Boyd CorporationUnited States

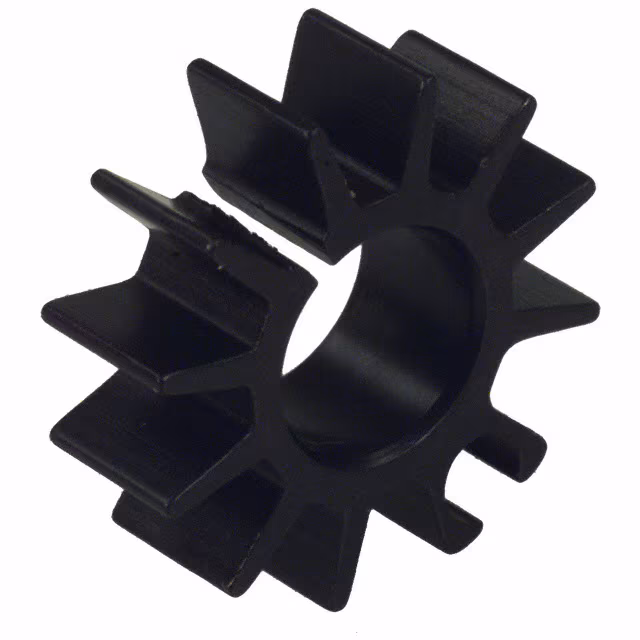

HEATSINK TO-5 2W BLK
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.250" (6.35mm) |
| Package | Bag |
| Package Cooled | TO-5 |
| Power Dissipation @ Temperature Rise | 1.4W@70°C |
| Thermal Resistance @ Forced Air Flow | 35.00°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 56.00°C/W |
| Other | |
| Attachment Method | Press Fit |
| Base Product Number | 323005 |
| Diameter | 0.318" (8.07mm) ID, 0.750" (19.05mm) OD |
| Length | - |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Aavid, Thermal Division of Boyd Corporation |
| Product Status | Active |
| Series | - |
| Shape | Cylindrical |
| Type | Board Level |
| Width | - |
