ebm-papst Inc.Germany

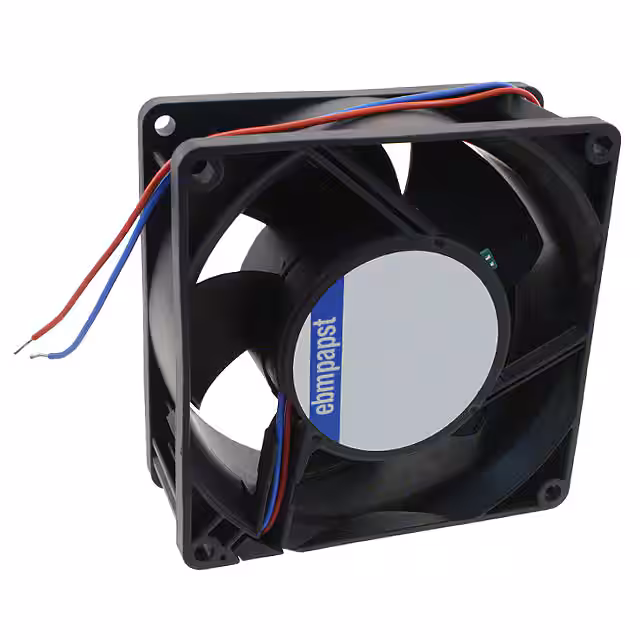

FAN AXIAL 92X38MM 24VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 9 W |
| Voltage Range | 11 ~ 30VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 55.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Operating Temperature | -4~158°F(-20~70°C) |
| Package | Box |
| Size / Dimension | Square - 92mm L x 92mm H |
| Other | |
| Air Flow | 86.0 CFM (2.41m³/min) |
| Approval Agency | CSA, UL, VDE |
| Base Product Number | 3214J |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 6800 RPM |
| Series | 3200J |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.529 lb (239.95 g) |
| Width | 38.00mm |
Documents
No documents are linked to this part yet.
