Patco ElectronicsUnited States

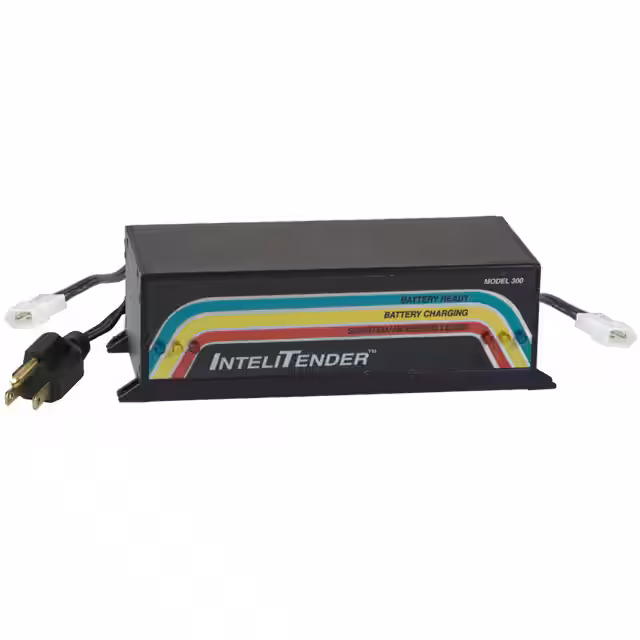

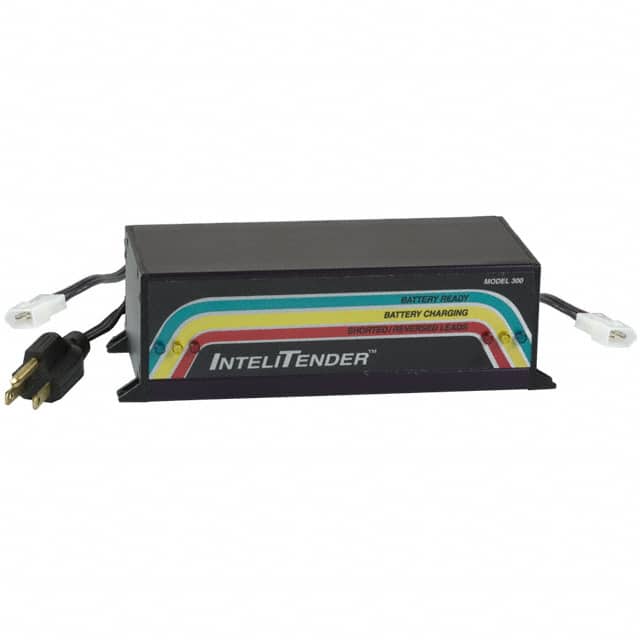

BATT CHRGR ENCLOSED 10-14V 1.5A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Charge Current - Max | 1.5A |
| Power - Max | - |
| Voltage - Input | 120VAC |
| Voltage - Nominal | 10V ~ 14V |
| Environment and package | |
| Battery Cell Size | 12V |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C~50°C |
| Package | Bulk |

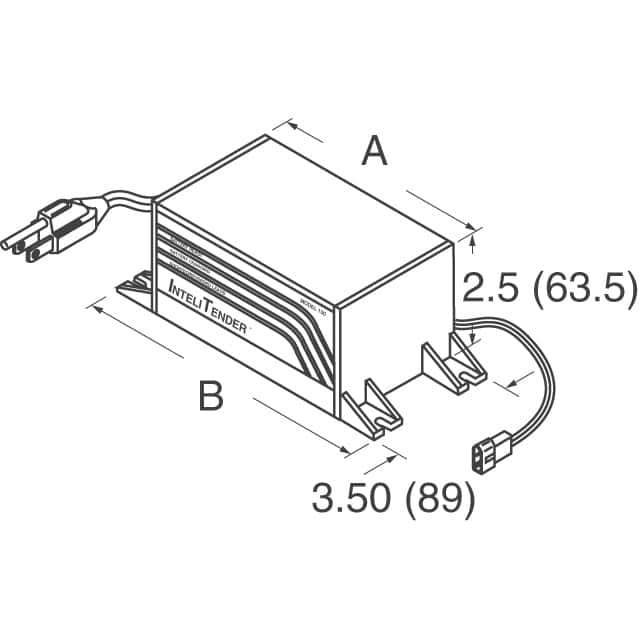

| Size / Dimension | 7.00" L x 3.50" W x 2.50" H (177.80mm x 88.90mm x 63.50mm) |
| Other | |
| Approval Agency | - |
| Battery Chemistry | Lead Acid |
| Charge Time | 8.5 Hrs |
| Features | Multiple Charge Modes |
| Mfr | Patco Electronics |
| Number of Cells | 1 |
| Product Status | Active |
| Series | InteliTender 300 |
| Termination Style | - |
| Type | Enclosed |
| Weight | 1200 g |
