3212

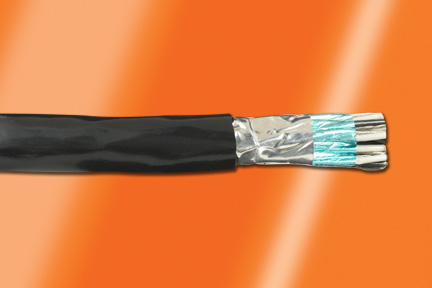

ActiveAlpha Wire 24 AWG, 3 Conductor Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -55 to 105°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code G |
| 1) Component 1 | 3 x 1 COND |
| 1) Military | a) Component 1 |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 3 Components Cabled |
| 2) Capacitance | 40 pF/ft @1 kHz, Nominal Conductor-to-Conductor |
| 2) CE | EU Low Voltage Directive 2014/35/EU |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail. |
| 3) Ground Capacitance | 72 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 4 lbs. (max.) |
| 3) Shield | Tinned Copper BRAID Shield,90% Coverage (min.) |
| 4) Inductance | 0.2 μH/ft, Nominal |
| 5) OA Shield DCR | 5 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 12 x 5.94 x 5 Continuous Length |
| a) Color(s) | SLATE |
| a) Twists | 8.0 Twists/foot (min.) |
| b) 500 FT | 10.5 x 5 x 3.5 Continuous Length |
| b) Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 3212 CE ROHS * = Factory Code |
| c) 100 FT | 6.5 x 2 x 1.9 Continuous Length |
| c) Core Wrap | Clear Mylar Tape, 25% Overlap (min.) |
| Color | WHITE |
| Cond | 1 |
| Electrical Properties | For Engineering purposes only |
| Packaging | Flange x Traverse x Barrel (inches) |
