TE ConnectivitySwitzerland

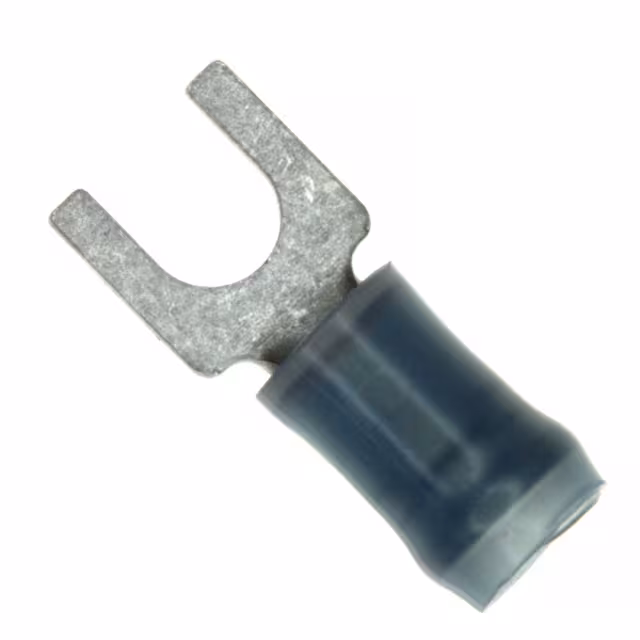

CONN SPADE TERM 14-16AWG #8 BLU
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 8 Stud |
| Other | |
| Base Product Number | 3212 |
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) |
| Length - Overall | 0.753" (19.13mm) |
| Length - Ring Center to Termination | 0.203" (5.16mm) |
| Length - Termination | 0.404" (10.26mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | PIDG |
| Terminal Type | Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.171" (4.34mm) |
| Width - Outer Edges | 0.297" (7.54mm) |
| Wire Gauge | 14-16 AWG |
