Phoenix ContactGermany

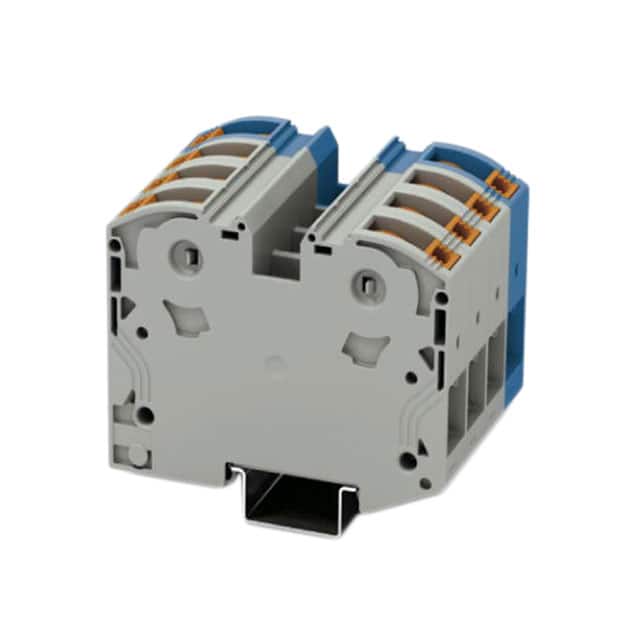

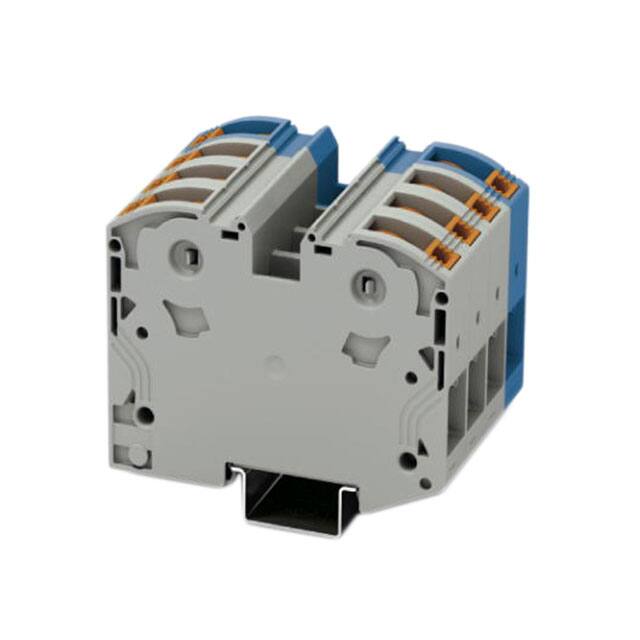

CONN TERM BLK FEED THRU 2-14 AWG
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 125 A |
| Current - UL | 115 A |
| Voltage - IEC | 1000V |
| Voltage - UL | 1000V |
| Environment and package | |
| Package | Bulk |
| Other | |
| Color | Blue, Gray |
| Disconnect Type | - |
| Features | - |
| Fuse Type | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | Phoenix Contact |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Product Status | Active |
| Series | CLIPLINE PTPOWER |
| Stripping Length | 25mm |
| Terminal - Width | 48.0mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Wire Gauge or Range - AWG | 2-14 AWG |
| Wire Gauge or Range - mm² | 2.5-35mm² |
Documents
No documents are linked to this part yet.
