AmphenolUnited States

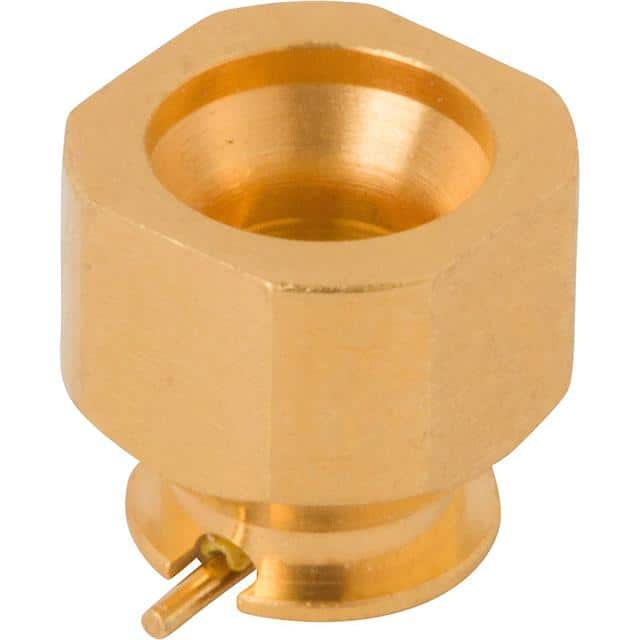

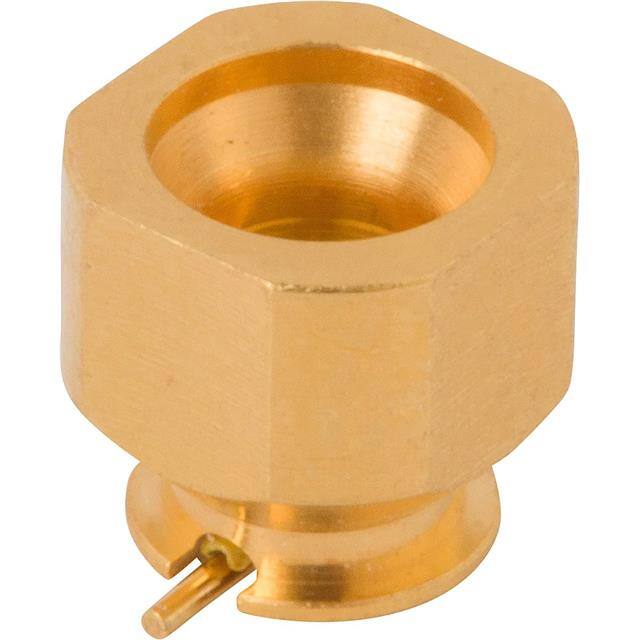

SMPM MALE NON-MAGNETIC PCB SURFA
All alternatives
View full reportTechnical parameters
Key specs
GenderMale
Impedance50 Ω
Max frequency20 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 20 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~165°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Base Product Number | 3211-40 |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polyamide-Imide (PAI) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 100 |
| Mfr | Amphenol SV Microwave |
| Number of Ports | 1 |
| Product Status | Active |
| Series | SMPM |
| Shield Termination | Solder |
