TE ConnectivitySwitzerland

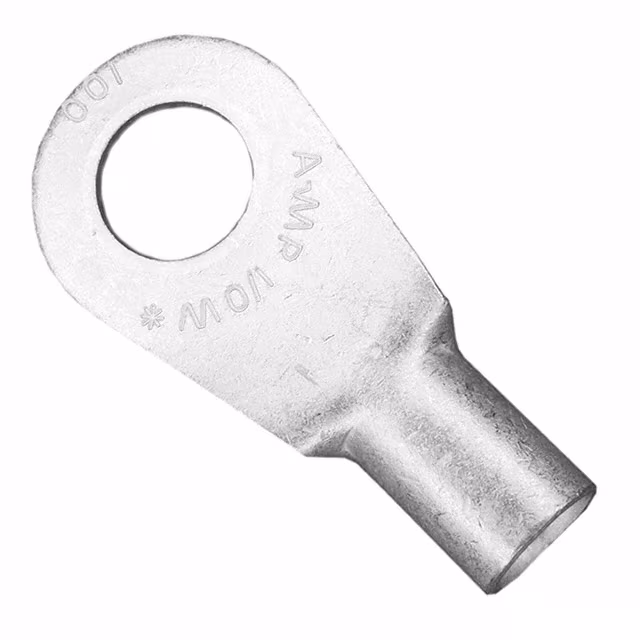

CONN RING CIRC 1/0AWG #5/8 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 5/8 Stud |
| Other | |
| Base Product Number | 3207 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter | - |
| Length - Overall | 2.678" (68.02mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | Solistrand |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.070" (1.78mm) |
| Width - Outer Edges | 1.265" (32.13mm) |
| Wire Gauge | 1/0 AWG |
Documents
No documents are linked to this part yet.
