Song Chuan(松川)China
Compact size miniature PCB relays.; High temperature endurance up to 125°C.; IR-Reflow process compatible (special version).
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage12 V

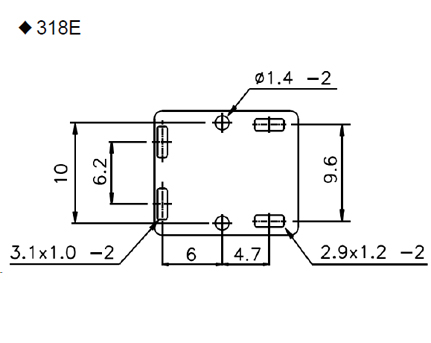

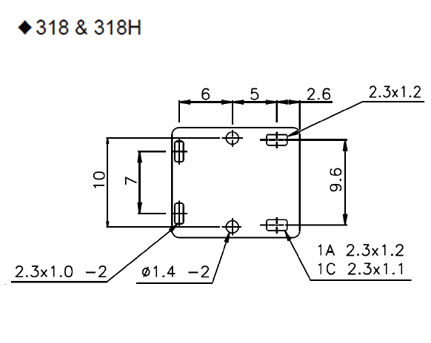

| Power | |
|---|---|
| Coil voltage | DC | 12V |
| Max. Allowable Contact current(A) | 318:35A318H:45A318E:50A |
| Power consumption | DC | 318:Approx. 0.9W318H:Approx. 0.64W318E:Approx. 0.86W |
| Other | |
| 1. | 318 | — | Basic series designation |
| 2. | Blank | — | Standard type |
| 3. | R | — | IR reflow type |
| 4. | 1A | — | Single pole normally open |
| 5. | H | — | Contact material AgSnO |
| 6. | C | — | Flux tight |
| 7. | □ | — | Coil voltage (please refer to thecoil rating data for the availability) |
| AC | —— |
| Contact and coil | 500V |
| Contact circuits | —— |
| Contact configuration | 1A、1C |
| Contact rating | Resistive load | 318:NO : 35A 14VDCNC : 20A 14.5VDC318H:NO : 45A 14VDCNC : 20A 14VDC318E:NO : 50A 14VDC |
| Dielectric strength | Open contact | 500V |
| Electrical(Min.) | 100K |
| Life expectancy | Mechanical(Min.) | 1×106 (frequency 18,000 ops./hr) |
| Outline (L×W×H) mm | 14.4×12.4×16.8 |
