METZ CONNECT USA Inc.Germany

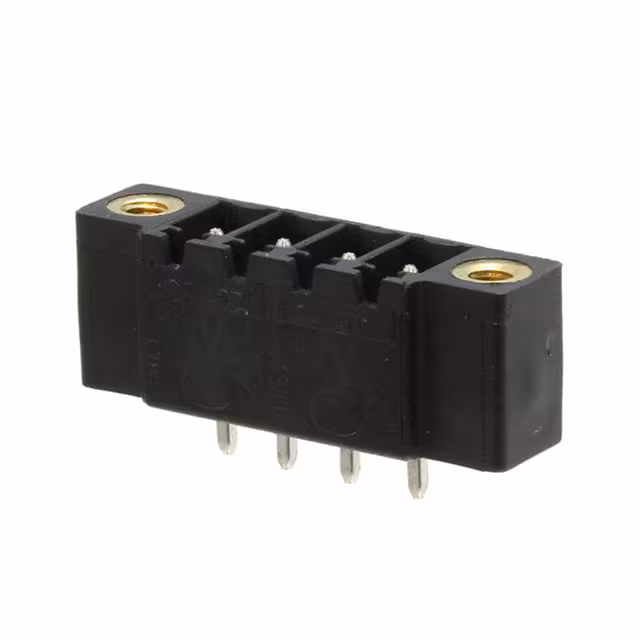

SHROUDED HEADER, VERTICAL, FLANG
All alternatives
View full reportTechnical parameters
Key specs
Positions4
Pitch3.81 mm
| Power | |
|---|---|
| Current - IEC | - |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Environment and package | |
| Insulation Height | 0.362" (9.20mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Screw Size | - |
| Other | |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.128" (3.25mm) |
| Features | Mating Flange |
| Header Orientation | Vertical |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | METZ CONNECT USA Inc. |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pitch | 0.150" (3.81mm) |
| Plug Wire Entry | - |
| Positions Per Level | 4 |
| Product Status | Active |
| Series | - |
| Termination Style | Solder |
| Torque - Screw | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
