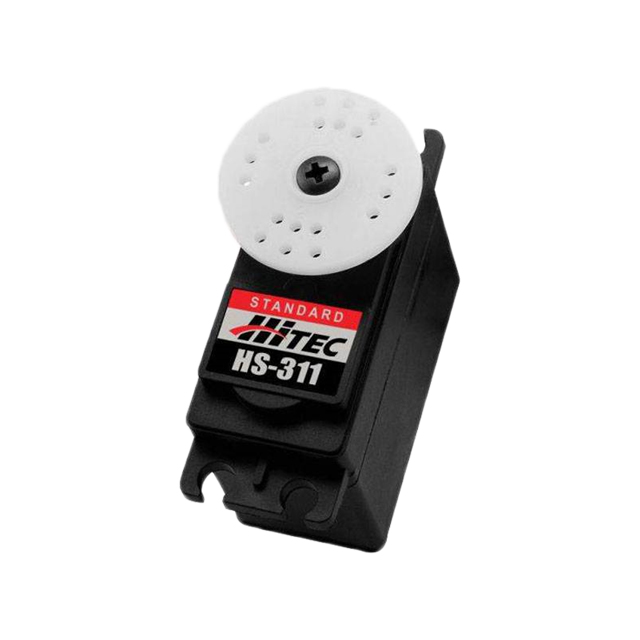

HS-311 STANDARD ECONOMY
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | - |
| Voltage - Rated | 4.8 ~ 6VDC |
| Environment and package | |
| Mounting Hole Spacing | 1.882" (47.80mm) |
| Operating Temperature | -20°C ~ 60°C |
| Package | Bulk |
| Size / Dimension | Rectangular - 1.575" x 0.787" (40.00mm x 20.00mm) |
| Other | |
| Approval Agency | - |
| Diameter - Shaft | - |
| Encoder Type | - |
| Features | - |
| Function | Servomotor, RC (Hobby) |
| Gear Reduction Ratio | - |
| Length - Shaft and Bearing | 0.212" (5.38mm) |
| Mfr | Hitec Commercial Solutions |
| Motor Type | Positional Rotation |
| Product Status | Active |
| RPM | - |
| Series | HS-311 |
| Termination Style | Wire Leads with Connector |
| Torque - Max Momentary (oz-in / mNm) | - |
| Torque - Rated (oz-in / mNm) | 49 / 346 |
| Type | DC Motor |
| Weight | 0.095 lb (43.09 g) |
