Alpha WireUnited States

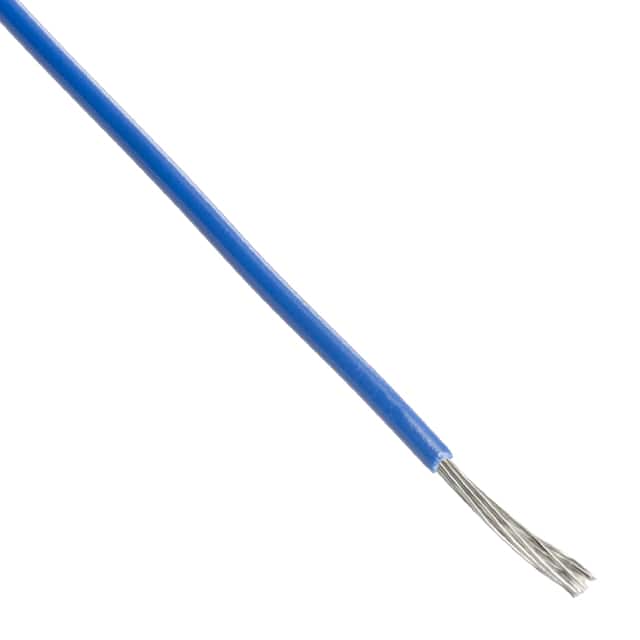

HOOK-UP STRND 18AWG BLUE 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600V |
| Environment and package | |
| Operating Temperature | -10°C~105°C |
| Other | |
| Base Product Number | 3130 |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Bare |
| Conductor Strand | 31/32 |
| Features | - |
| Jacket Color | Blue |
| Jacket (Insulation) Diameter | 0.114" (2.89mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.031" (0.80mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Product Status | Obsolete |
| Ratings | UL Style 1015 |
| Series | - |
| Wire Gauge | 18 AWG |
Documents
No documents are linked to this part yet.
