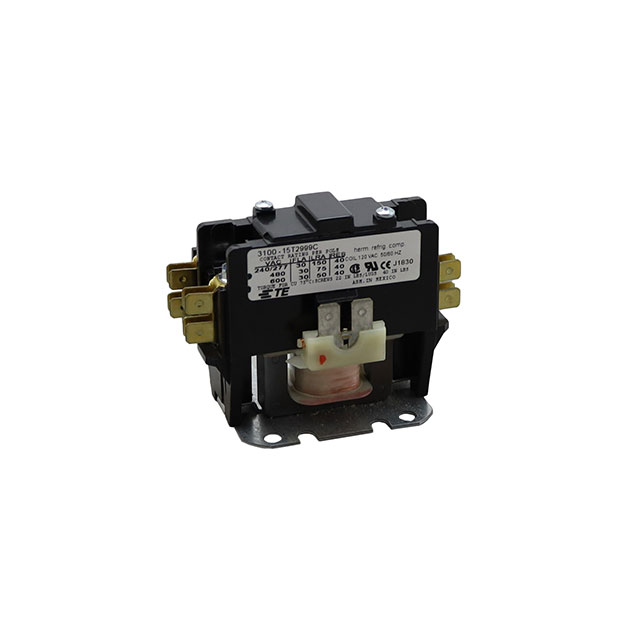

3100-15T2999C
TE ConnectivitySwitzerland

3100-15T2999C

Last Time BuyContactors (Electromechanical)

RELAY CONTACTOR SPST 30A 120V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Coil Power5.3VA
Coil Voltage120VAC
Contact Rating (Current)30 A
Must Operate Voltage88 VAC
Must Release Voltage20 VAC
Switching Voltage600VAC - Max
Environment and package
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 65°C
PackageBulk
Other
Base Product Number3100-15
Coil Resistance420Ohms
Contact FormSPST-NO (DM) (1 Form X)
Contact MaterialSilver Cadmium Oxide (AgCdO)
FeaturesInsulation - Class B
MfrTE Connectivity Potter & Brumfield Relays
Product StatusLast Time Buy
Series3100, Products Unlimited
Termination StyleScrew Terminal, Quick Connect - 0.250" (6.3mm)

Documents

No documents are linked to this part yet.
