TE ConnectivitySwitzerland

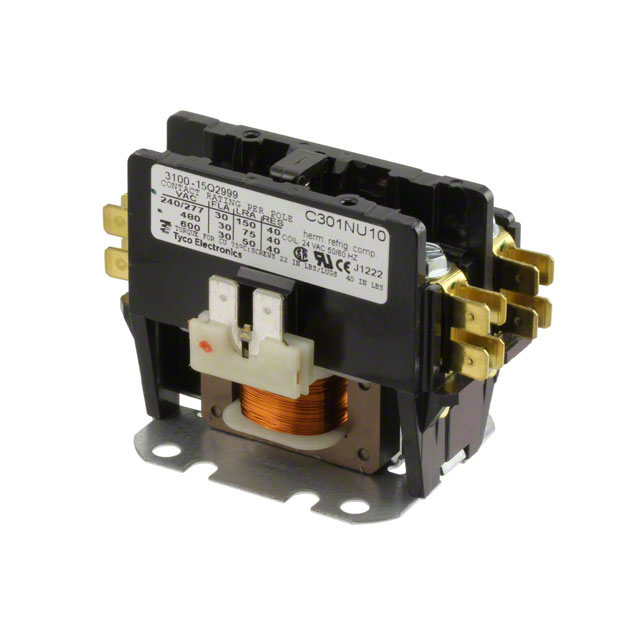

RELAY CONTACTOR SPST 30A 24V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Coil Power | 5.3VA |
| Coil Voltage | 24VAC |
| Contact Rating (Current) | 30 A |
| Must Operate Voltage | 18 VAC |
| Must Release Voltage | 6 VAC |
| Switching Voltage | 600VAC - Max |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 65°C |
| Package | Bulk |
| Other | |
| Base Product Number | 3100 |
| Coil Resistance | 16.5Ohms |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Features | Insulation - Class B |
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Product Status | Last Time Buy |
| Series | 3100, Products Unlimited |
| Termination Style | Screw Terminal, Quick Connect - 0.250" (6.3mm) |
