Alpha WireUnited States
3077

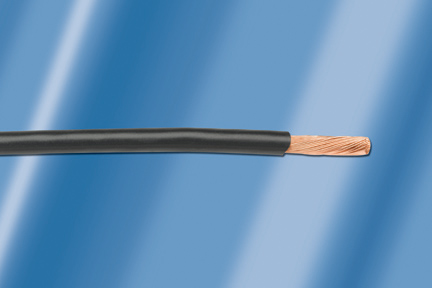

ActiveOur hook-up wire is available in a variety of insulations to meet your electrical and mechanical needs.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -40 to 105°C |
| Other | |
| 105°C / 600 V RMS | 90°C Dry / 60°C Wet / 600 V RMS |
| 1) Component 1 | 1 X 1 HOOKUP |
| (1) Print | ALPHA WIRE E163872-* (UL) MTW 600V OR AWM STYLE 1015/1230 105C 600V VW-1 IEC 60332-1 16 AWG OR CRU AWM I A/B 105C 600V FT1 OR TEW 105C 600V FT1 CE ROHS {0} * = Factory Code |
| 2) Bend Radius | 5X Cable Diameter |
| (2) Color(s) | WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE, SLATE, VIOLET, GREEN/YELLOW, YELLOW/GREEN YELLOW/ORANGE/GRAY, DK BLUE, WHITE/BLUE |
| 2) Inductance | 0.06 μH/ft, Nominal |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Conductor DCR | 4.4 Ω/1000ft @20°C, Nominal |
| 3) IEC | EN 60332-1 Flame Behavior |
| 3) Pull Tension | 20.4 Lbs, Maximum |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| a) 1000 FT | 10.5 x 5 x 3.5 Continuous length |
| AWM I A/B | 105°C / 600 V RMS |
| AWM/STYLE 1015 | MTW |
| AWM/STYLE 1230 | 105°C Dry / 60°C Wet / 600 V RMS |
| b) 1000 FT UK | 11 x 3 x 5 Continuous length |
| c) 500 FT | 6.5 x 6 x 1.9 Continuous length |
| d) 100 FT UK | 3.5 x 3 x 1.125 Continuous length |
| e) 100 FT | 6.5 x 2 x 1.9 Continuous length |
| Electrical Properties | (For Engineering purposes only) |
| MTW | 90°C Dry / 60°C Wet / 600 V RMS |
| Packaging | Flange x Traverse x Barrel (inches) |
