Phoenix ContactGermany

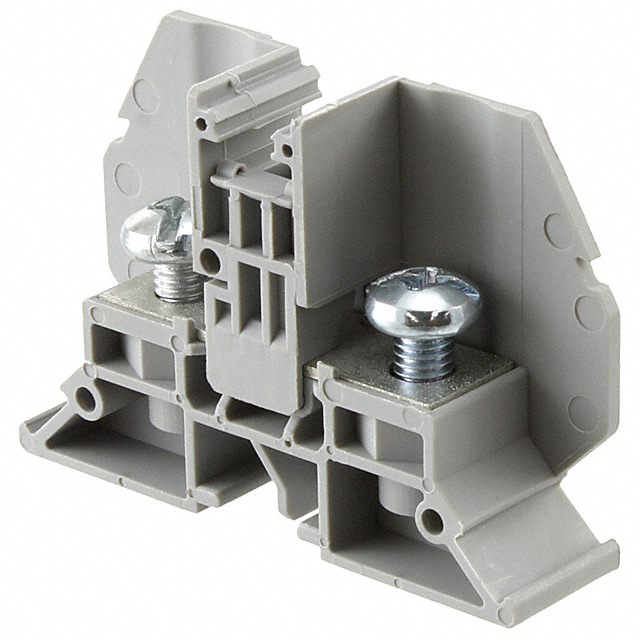

TERM BLK NEMA 2POS 13.0MM GRAY
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 57 A |
| Current - UL | 45 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Environment and package | |
| Height (Max) | 1.457" (37.00mm) |
| Mounting Type | DIN Rail |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Features | - |
| Housing Color | Gray |
| Length | 2.098" (53.30mm) |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Product Status | Obsolete |
| Series | CLIPLINE RSC |
| Stripping Length | - |
| Terminal - Width | 13.0mm |
| Termination Style | Screw |
| Type | NEMA Open Construction |
| Wire Gauge or Range - AWG | 8-26 AWG |
| Wire Gauge or Range - mm² | 0.1-6mm² |
Documents
No documents are linked to this part yet.
