Phoenix ContactGermany

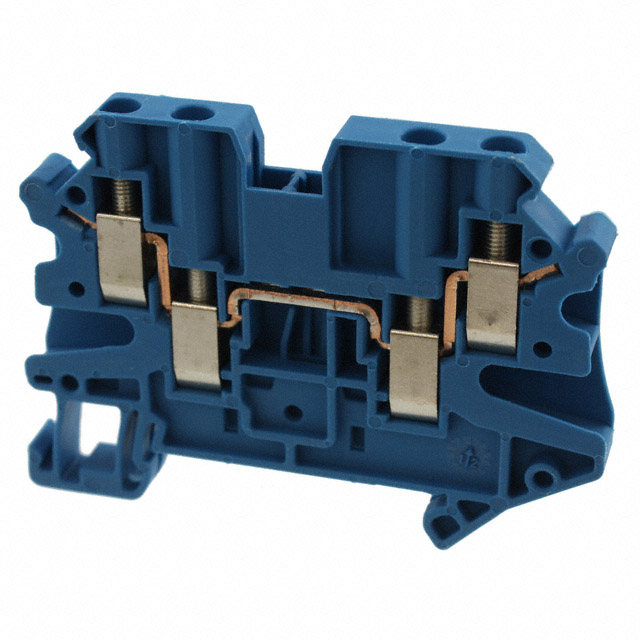

CONN TERM BLK FEED THRU 10-26AWG
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - IEC | 32 A |
| Current - UL | 30 A |
| Voltage - IEC | 500V |
| Voltage - UL | 150V |
| Environment and package | |
| Package | Bulk |
| Other | |
| Color | Blue |
| Disconnect Type | - |
| Features | - |
| Fuse Type | - |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon |
| Mfr | Phoenix Contact |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Product Status | Active |
| Series | CLIPLINE UT |
| Stripping Length | 9mm |
| Terminal - Width | 6.2mm |
| Termination Style | Screw |
| Type | Feed Through |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Wire Gauge or Range - mm² | 0.14-6mm² |
Documents
No documents are linked to this part yet.
