C&KUnited States

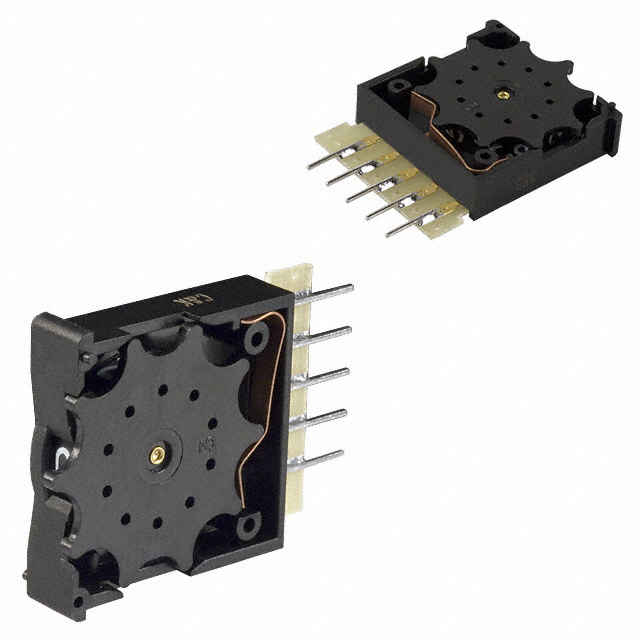

SWITCH THUMB BCD 0.1A 120V/28V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.1A @ 120VAC/28VDC |
| Environment and package | |
| Display Characters - Height | - |
| Mounting Type | Panel Mount, Screw |
| Operating Temperature | -40°C ~ 65°C |
| Package | Tray |
| Panel Cutout Dimensions | - |
| Other | |
| Actuator Type | Thumbwheel |
| Color | Black |
| Contact Finish | - |
| Contact Material | Copper Alloy |
| Depth Behind Flange | 36.68mm |
| Electrical Life | 100,000 Cycles |
| End Caps | Sold Separately |
| Features | - |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Mfr | C&K |
| Number of Sections | 1 |
| Output Code | BCD |
| Product Status | Obsolete |
| Read Out | 0 ~ 9 |
| Section Width | 0.350" (8.89mm) |
| Series | 3 |
| Termination Style | PC Pin |
Documents
No documents are linked to this part yet.
