AmphenolUnited States

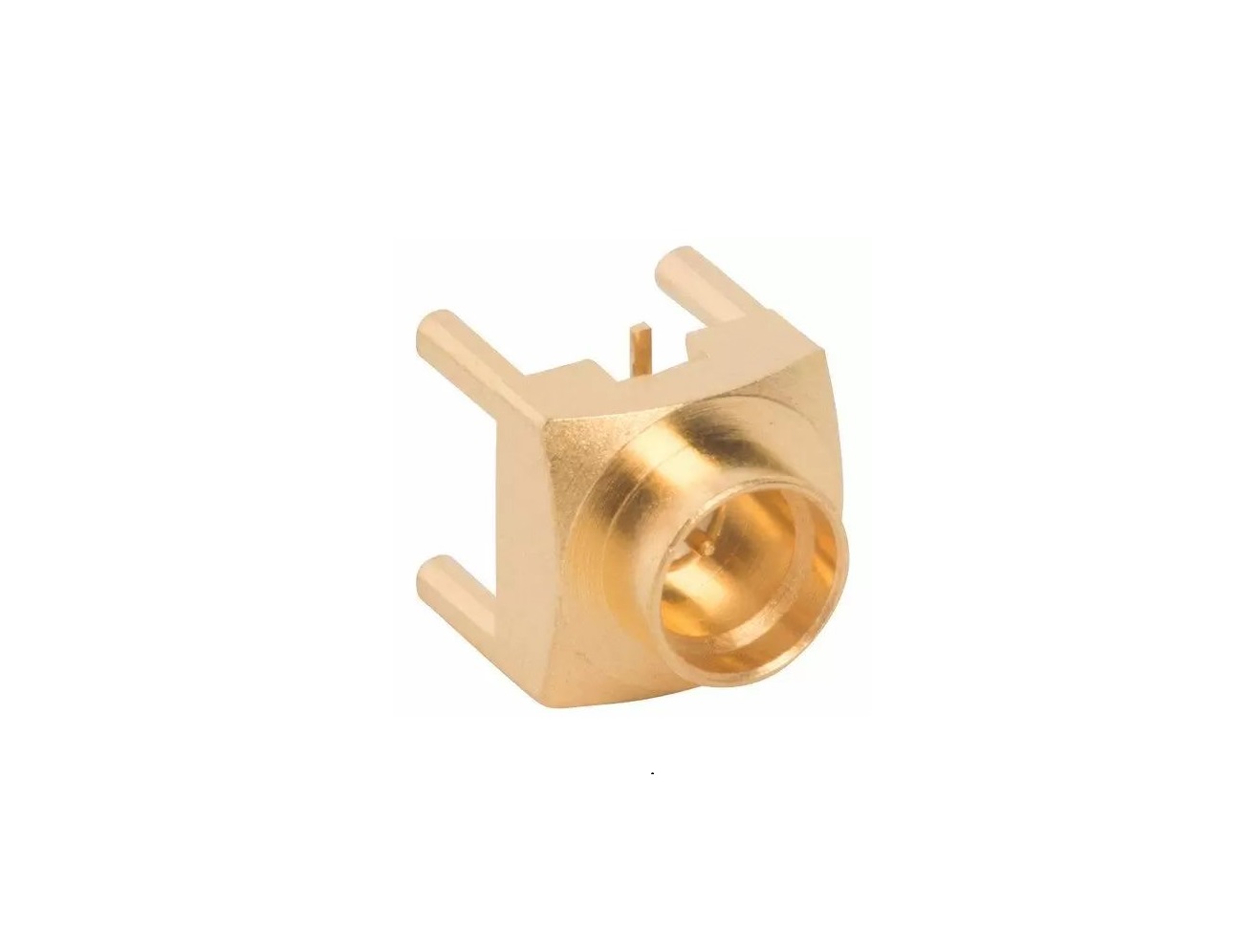

CONN SMP RCPT STR 50OHM EDGE MNT
All alternatives
View full reportTechnical parameters
Key specs
Connector styleSMP
GenderMale
Impedance50 Ω
Max frequency26.5 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 26.5 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Board Edge, End Launch |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | 3021 |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | - |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMP |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 100 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
