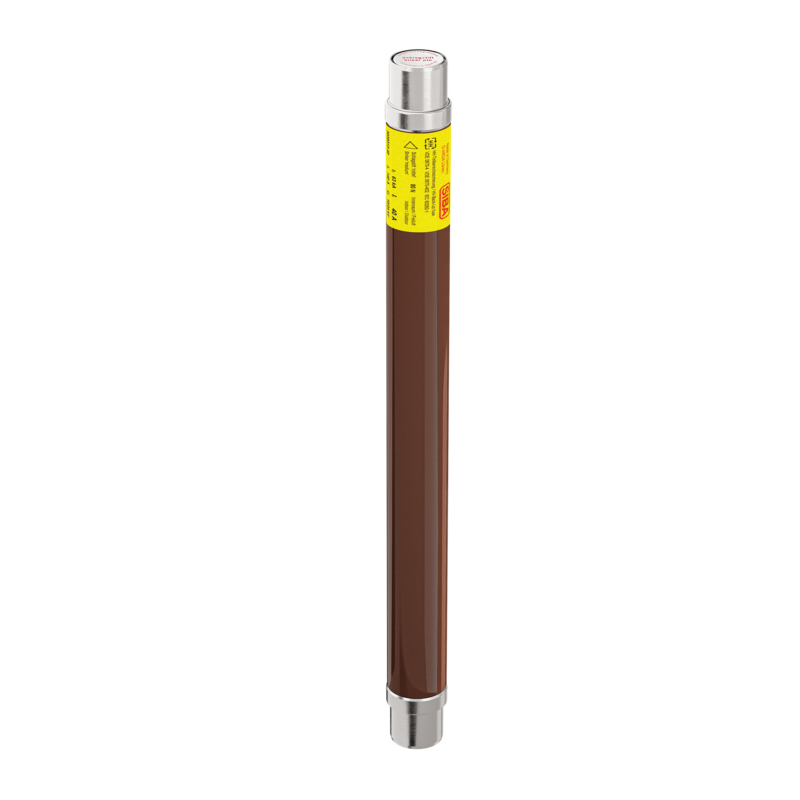

HHD-BU - Fuse-Link | Back-Up | e=537 | 10/24 kV | 10A | Striker 'medium' | 80 N | Indoor / Outdoor | HV-Fuse-Link | DIN-Standard
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Rated current | 10A |
| Rated voltage | 10/24 kV |
| Environment and package | |
| Dimensions | e=537 |
| Other | |
| 3D file | 3D file |
| Characteristic | Back-Up |
| DIN | DIN 43625 |
| Indicator / Striker Pin | 80 N |
| Indicator / Striker type | Striker 'medium' |
| Indoor / Outdoor | Indoor / Outdoor |
| Item number | 3020313.10 |
| Product group | HV-Fuse-Link |
| Product subgroup | DIN-Standard |
| Rated breaking capacity | 63 kA |
| Standard IEC | IEC 60282-1 |
| Type | Fuse-Link |
| Web PDF | Web PDF |
