LAPPGermany

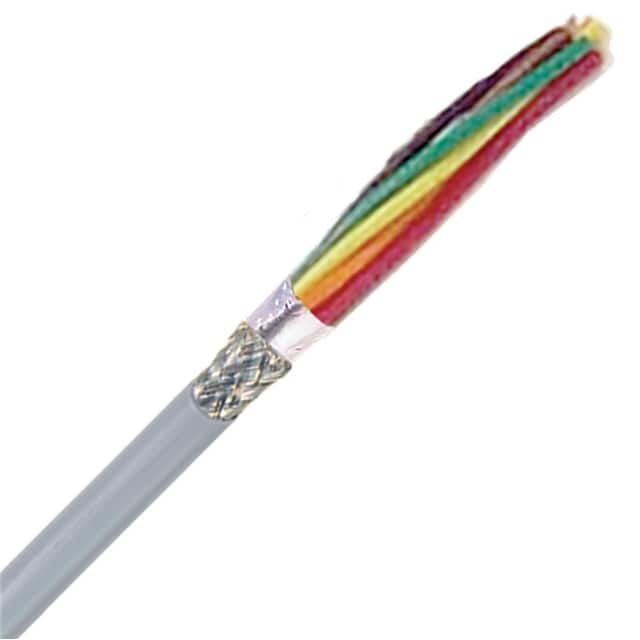

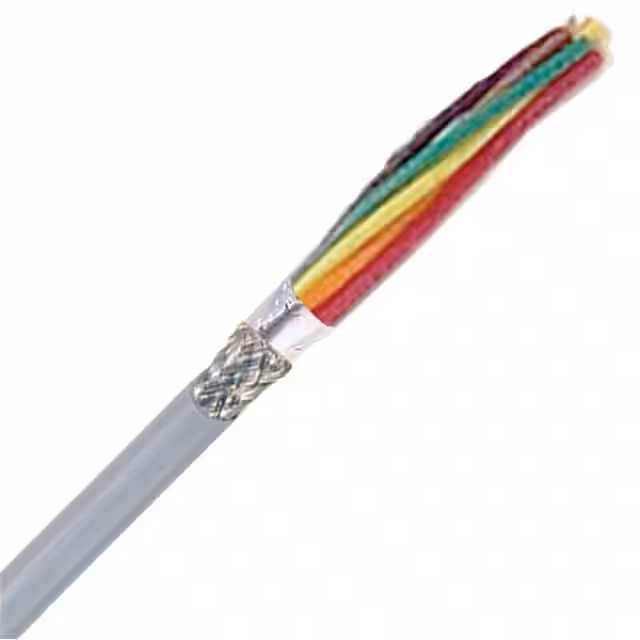

CBL UNITRON 300 S 16/6C 1=25FT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | - |
| Features | Drain Wire, Oil Resistant, UV Resistant |
| Jacket Color | Gray |
| Jacket (Insulation) Diameter | 0.413" (10.49mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | - |
| Length | 25.00' (7.62m) |
| Mfr | LAPP |
| Number of Conductors | 6 |
| Product Status | Active |
| Ratings | - |
| Series | Unitronic® |
| Shield Coverage | 100%, 75% |
| Shield Material | Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | Industrial, Signal, Control |
| Wire Gauge | 16 AWG |
