Dresden ElektronikGermany

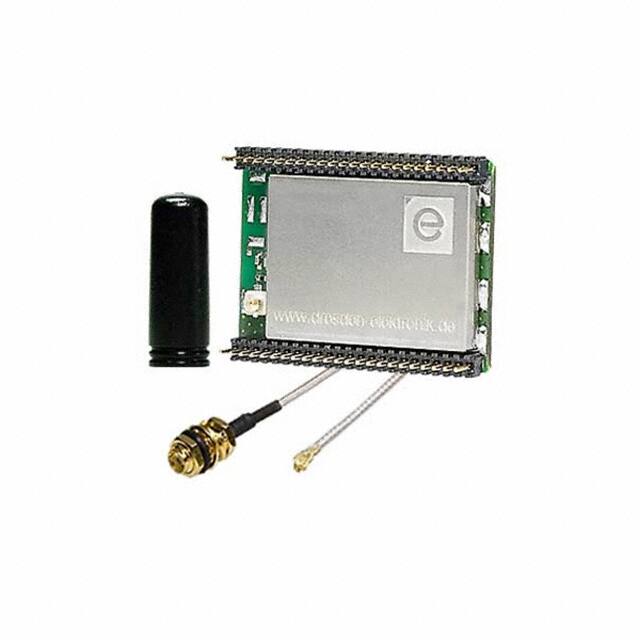

RF TXRX MODULE 802.15.4 U.FL SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 18mA |
| Current - Transmitting | 18mA |
| Power - Output | 2.4dBm |
| Voltage - Supply | 1.8V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Module |
| Other | |
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 2Mbps |
| Mfr | Dresden Elektronik |
| Modulation | - |
| Product Status | Obsolete |
| Protocol | 6LoWPAN, Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -101dBm |
| Serial Interfaces | I²C, JTAG, SPI, UART |
| Series | deRFmega128 |
| Utilized IC / Part | CC1101 |
Documents
No documents are linked to this part yet.
